Base enclosure
Description Spare part number
Base enclosure; includes red Beats logo 760035-001
Base enclosure; includes grey Beats logo 774152-001
Before removing the base enclosure, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery on page 34).
5. Remove the solid-state drive (see
WLAN module on page 35).
6. Remove the hard drive (see
Hard drive on page 38).

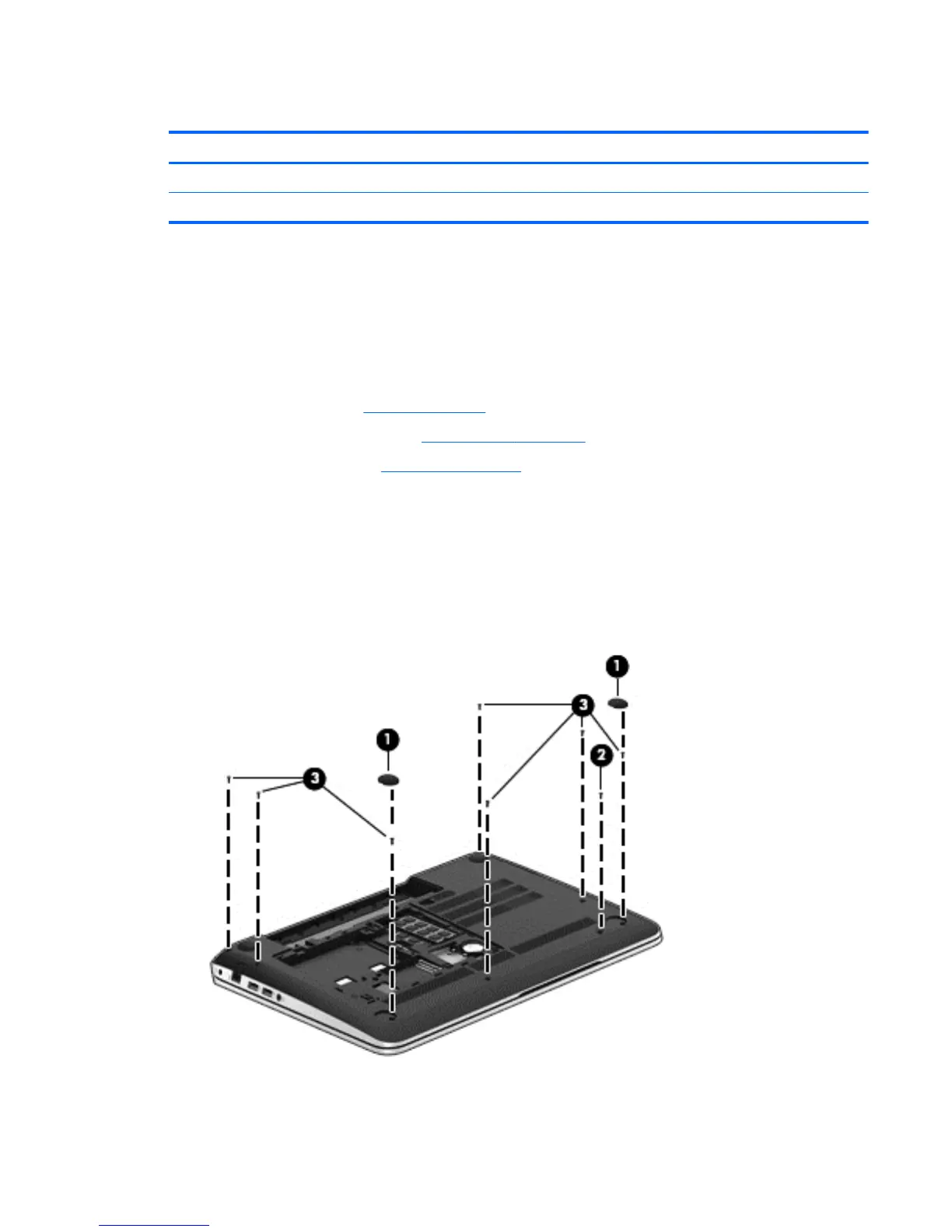

Remove the base enclosure:
1. Remove the front rubber feet (1).
2. Remove the screw cover (2).
The front rubber feet and the screw cover are included in the Rubber Kit, spare part number
720559-001.
3. Remove the eight Phillips PM2.5×5.5 screws (2) that secure the base enclosure to the computer.
Component replacement procedures 45
