TouchPad assembly
Description Spare part number
TouchPad assembly (includes TouchPad bracket, TouchPad button board, TouchPad, and cables) 760041-001
Tape kit, includes tape, gasket, Mylar insulator, top case insulator, and gasket boss 801975-001
Before removing the TouchPad, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery on page 34), and then remove the following components:
a. Service cover (see
WLAN module on page 35)
b. Hard drive (see
Hard drive on page 38)
c. Base enclosure (see
Base enclosure on page 45)
d. System board (see
System board on page 56)
Remove the TouchPad:

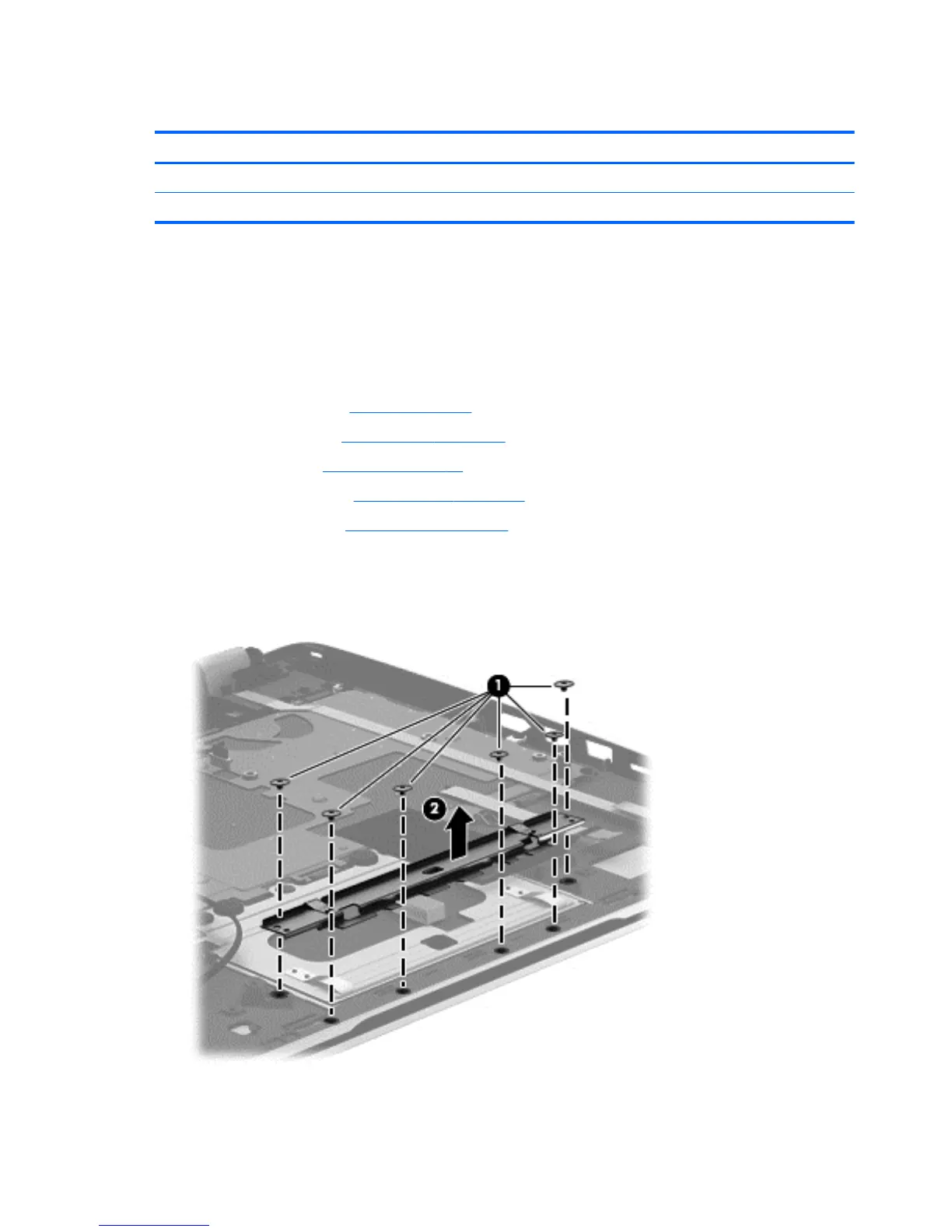

1. Remove the six Phillips PM2.0×2.9 screws (1) that secure the TouchPad bracket to the top cover.
2. Remove the TouchPad bracket (2).
3. Release the grounding tape (1) that connects the TouchPad to the top cover.
70 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
