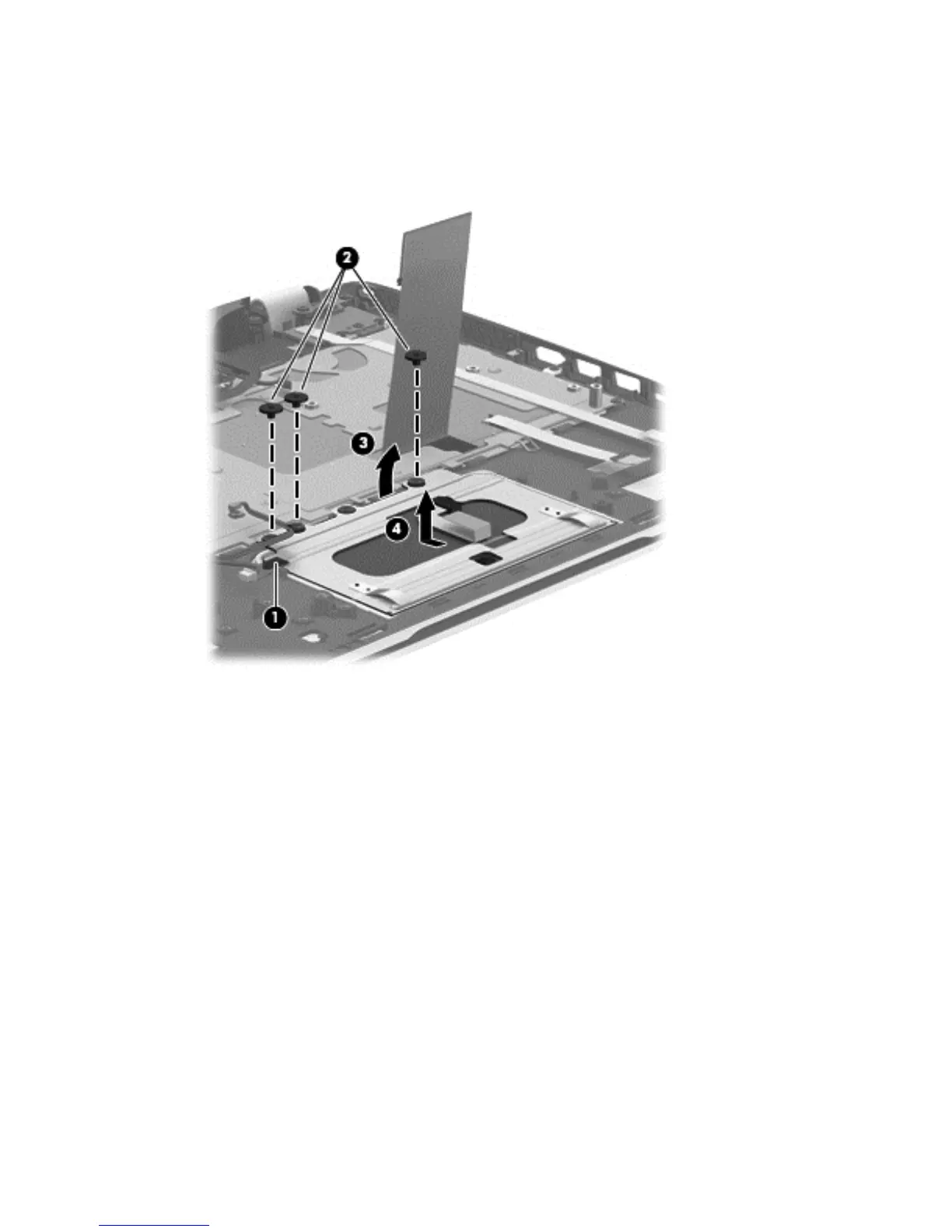

4. Remove the three Phillips PM2.5×2.5 broad head screws (2) that secure the TouchPad to the top cover.
5. Lift the rear edge of the TouchPad (3) until it rests at an angle.
6. Slide the TouchPad (4) toward the back of the top cover, and then lift the TouchPad straight up and
remove it.
Reverse this procedure to install the TouchPad.
Component replacement procedures 71
