2. Lift the metal side cover, rear side first, off the unit (2).

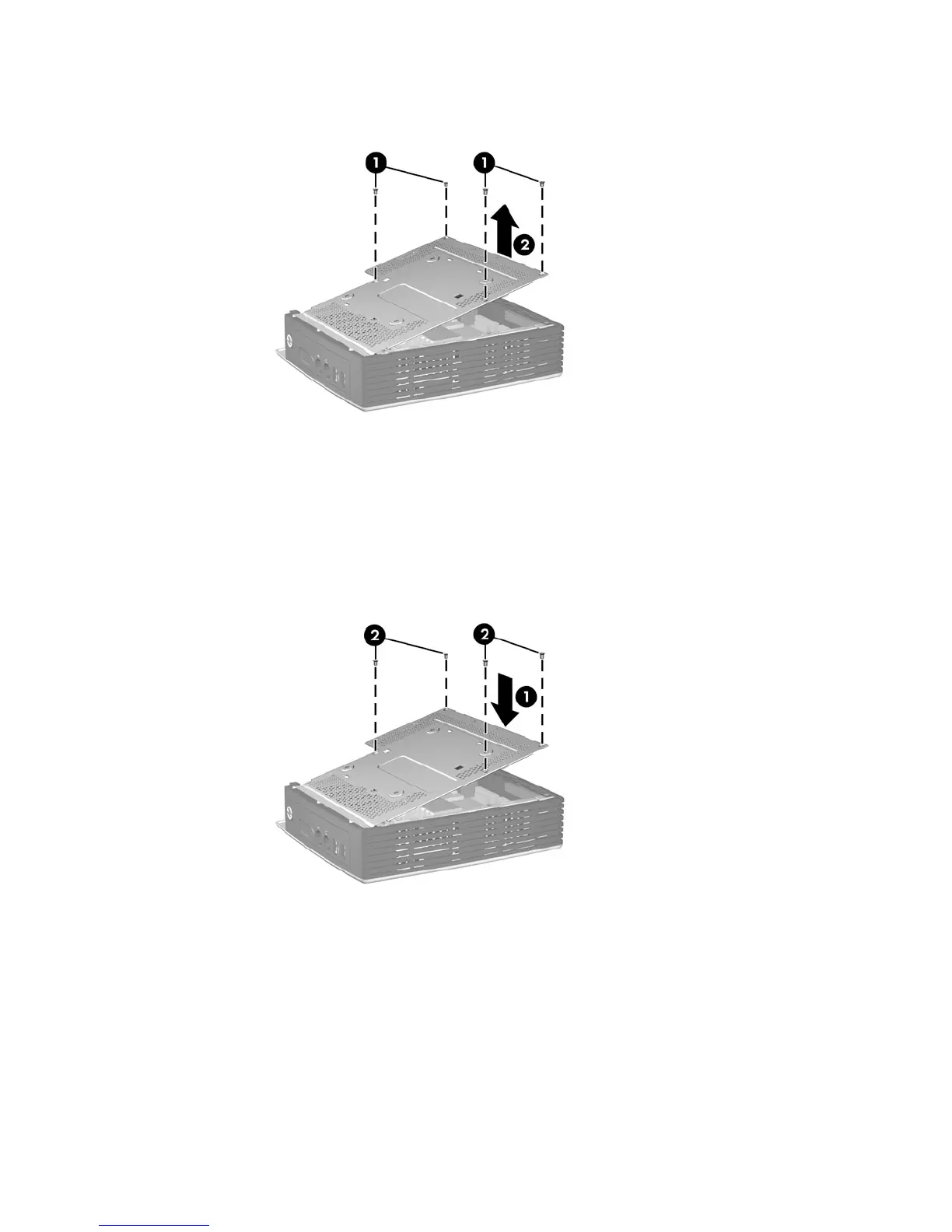

Figure 2-8 Removing the metal side cover
Replacing the Metal Side Cover and Side Access Panel
To replace the metal side cover:
1. Slip the front edge of the metal side cover under the lip on the chassis, lower the front edge, and
then press the metal side cover down into place (1).
2. Insert and tighten the four screws (2).
Figure 2-9 Replacing the metal side cover
To replace the access panel:
1. Align the tabs on the access panel with the slots in the chassis and place the access panel on
the side of the unit, offset about 3 mm (1/8 inch) toward the top of the unit (1).
Removing and Replacing the Side Access Panel and Metal Side Cover 13
