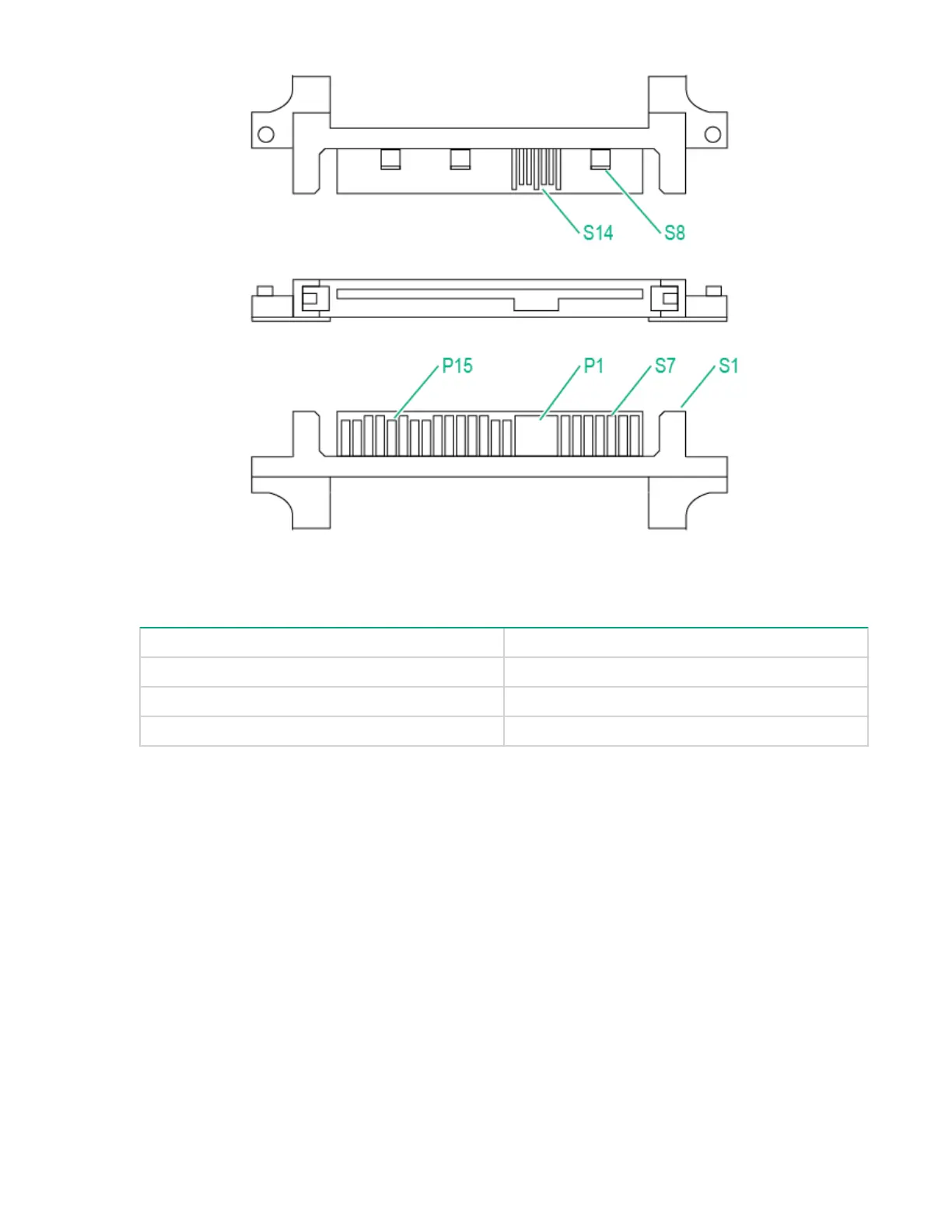

Figure 7: SAS connector detail
T
able 1
1: SAS connector pin description
Signal
Pin(s)
Contact block 1 - Port 0
S1-S7
Contact block 2 - Port 1
S8-S14
Power and Control block
P1-P15
34
Configuration considerations
33
35
