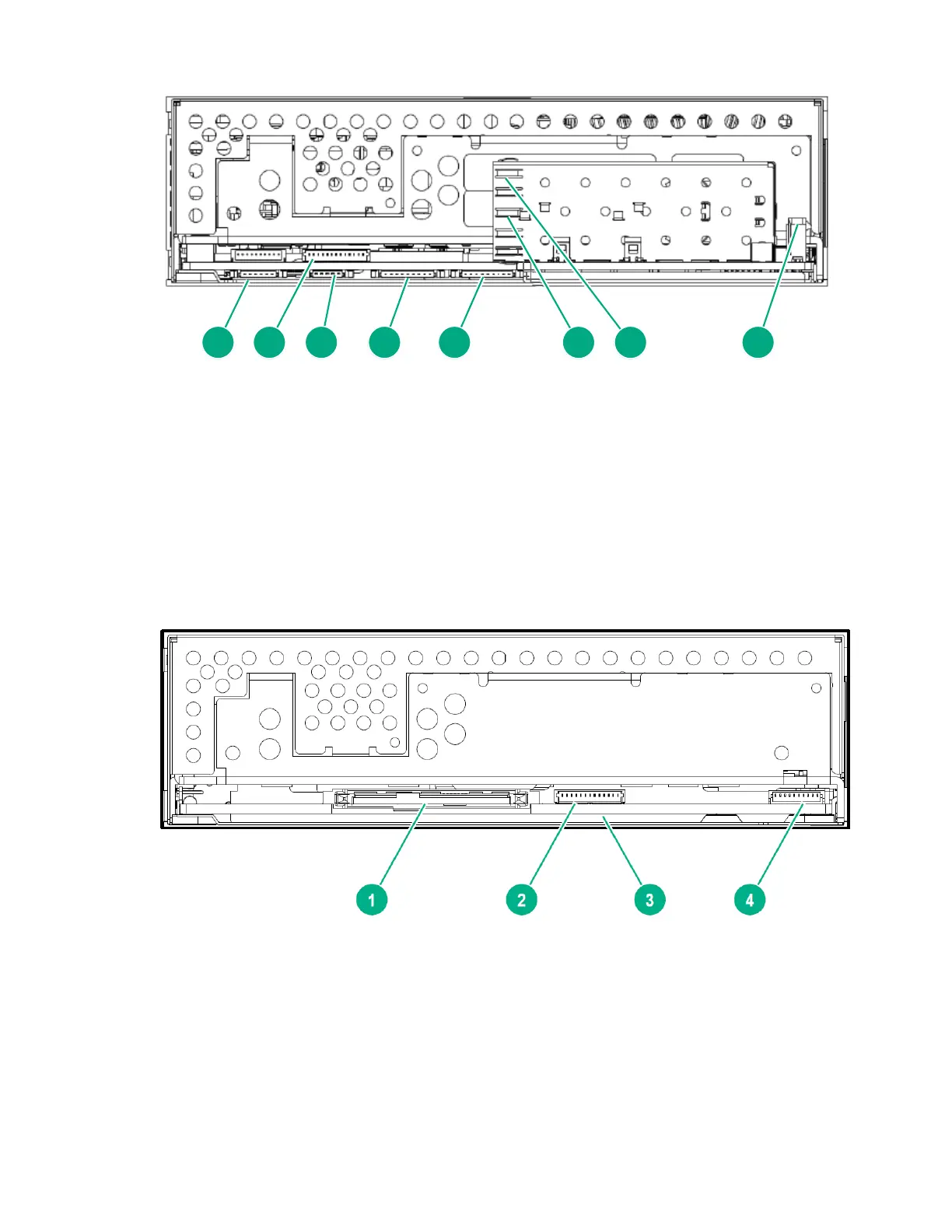

1. Library interface (ADI) 2. Ethernet connector
3. LED controls 4. AL_PA/LID/status connector
5. Speed/topology connector 6. Fibre channel transceiver (Port 0)
7. Fibre channel transceiver (Port 1) 8. Power connector
On SAS drives:
A standard internal SAS connector.
SAS drives do not have a separate power connector and must be powered through the SAS connector.
1. SAS connectors 2. Ethernet connector
3. LED controls 4. Library interface (ADI) and serial port (internal use only)
Installing and replacing drives 45
