CAUTION: To avoid damage to the server blade and processor, ensure the processor
heatsink's locking handle is fully back against the stops, rotated about 120° back. Also verify
that the plastic tabs on the processor's heatsink are pulled fully out before installation.

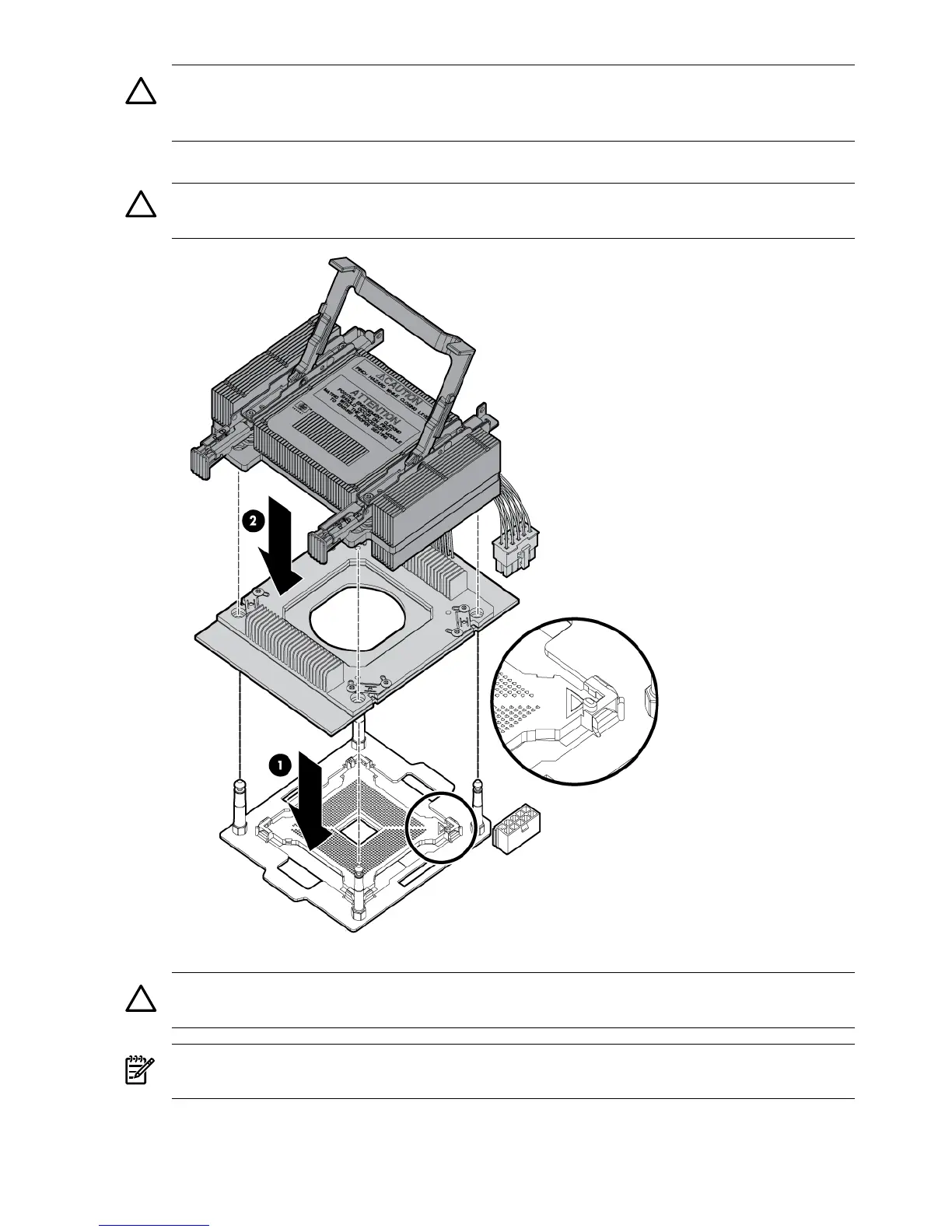

5. Install the heatsink over the load posts.
CAUTION: Do not lower the heatsink locking handle before pushing the plastic locking
tabs into place.
CAUTION: To prevent thermal instability and damage to the server blade, do not separate
the processor module from the processor's heatsink after they have been coupled.
NOTE: Positive engagement clicking should occur during mating of the processor heat
sink and processor module onto the socket to ensure proper seating.
24 Installing the server blade into the enclosure
