The following table shows label and description on how to install a module:
DescriptionLabel
Insert module into the guides and slide it in until it is fully inserted.1, 3
Close extractor handles2

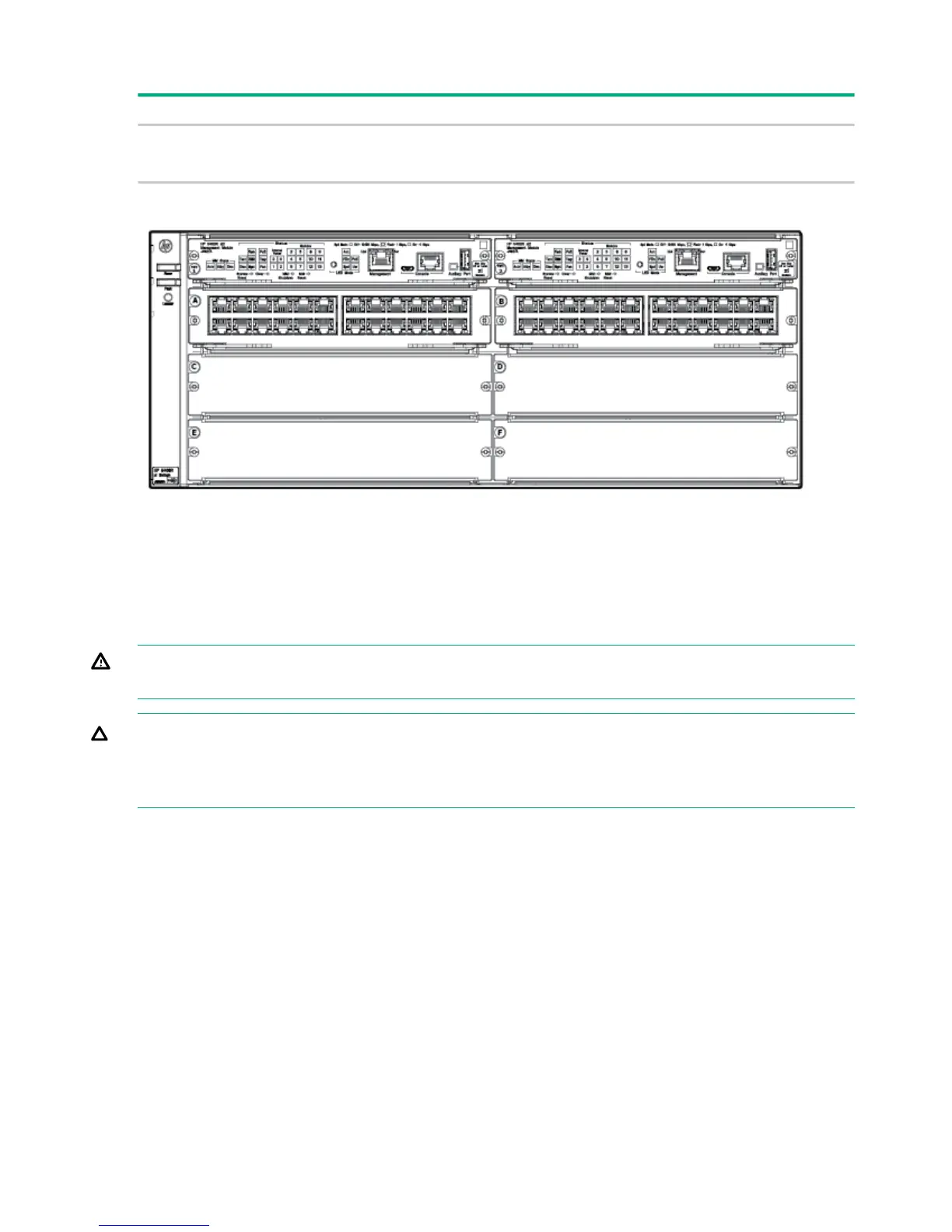

Figure 4. Module fully Installed
Installing or Removing a SFP transceiver
You can install or remove a SFP transceiver from the SFP v2 zl Module without having to power
off the switch. Use only SFP transceivers.
WARNING! The HPE SFPs are Class 1 laser devices. Avoid direct eye exposure to the beam
coming from the transmit port.
CAUTION: Use only supported genuine HPE SFP transceivers with your switch. Non-HPE
SFP transceivers are not supported, and their use may result in product malfunction. Should you
require additional HPE SFP transceivers, contact your HPE networking Sales and Service Office
or authorized dealer.
Installing the SFP transceivers:
Hold the transceiver by its sides and gently insert it into any of the slots in the module until it
clicks into place.
14 Installing the Modules
