13
Grounding the router with a grounding strip
1. Remove the grounding screw from the grounding hole in the chassis.
2. Use the grounding screw to attach the ring terminal of the grounding cable to the grounding
hole.
3. Use a screwdriver to fasten the grounding screw.
4. Connect the other end of the grounding cable to the grounding strip.

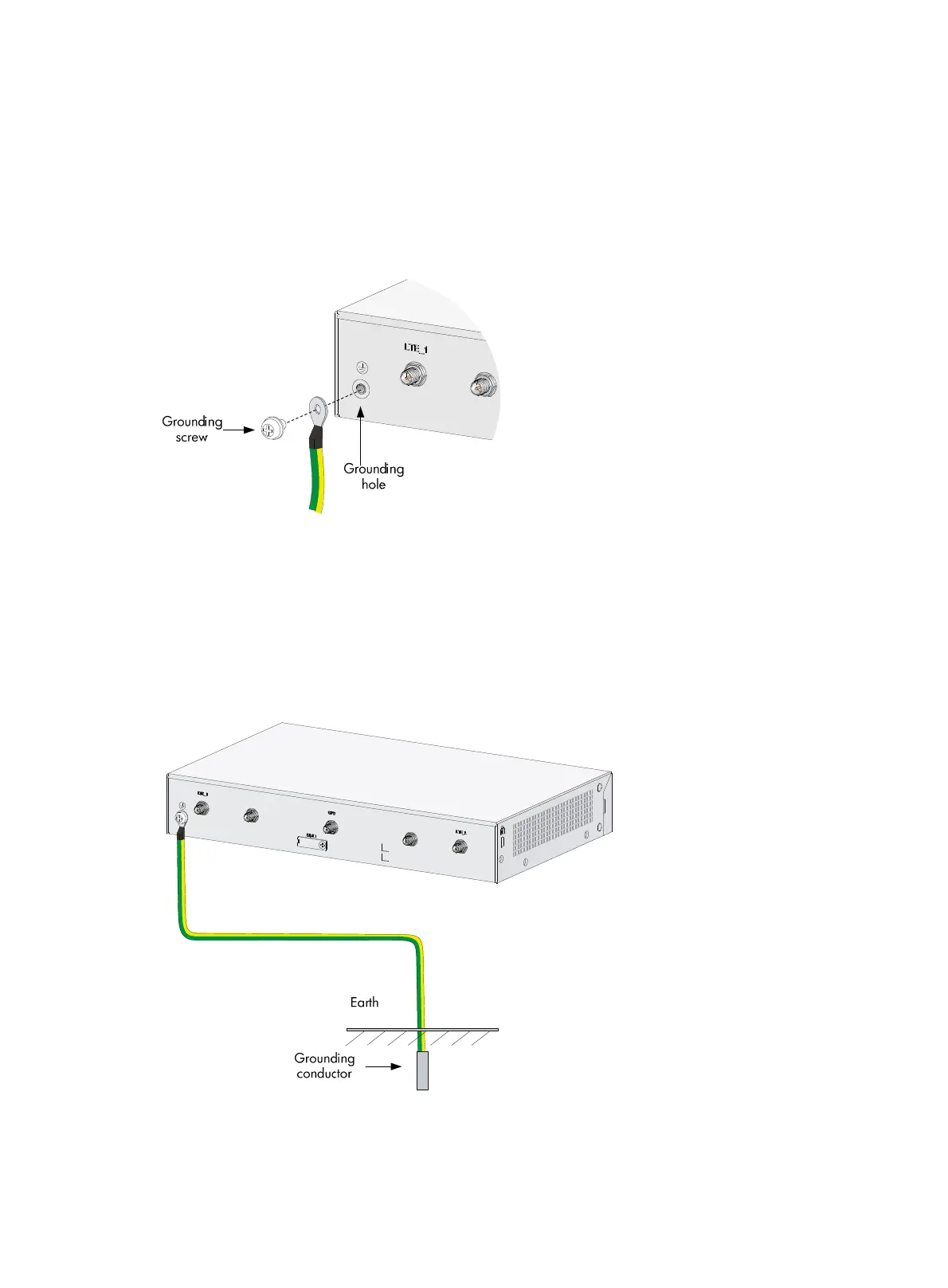

Figure 9 Connecting the grounding cable to the router
Grounding the router by burying a grounding conductor in the earth ground
If the installation site does not have any grounding strips, but earth ground is available, hammer a
0.5 m (1.64 ft) or longer angle iron or steel tube into the earth ground to act as a grounding
conductor.
Weld the yellow-green grounding cable to the angel iron or steel tube and treat the joint for
corrosion protection.
Figure 10 Grounding the router by burying a grounding conductor in the earth ground
