HP JH296A Installation Guide
4
of 1
of 1 rating
50 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
29
Appendix A Chassis views and technical
specifications
Chassis views
The figures in this appendix are for illust
ration only
.
JH296A

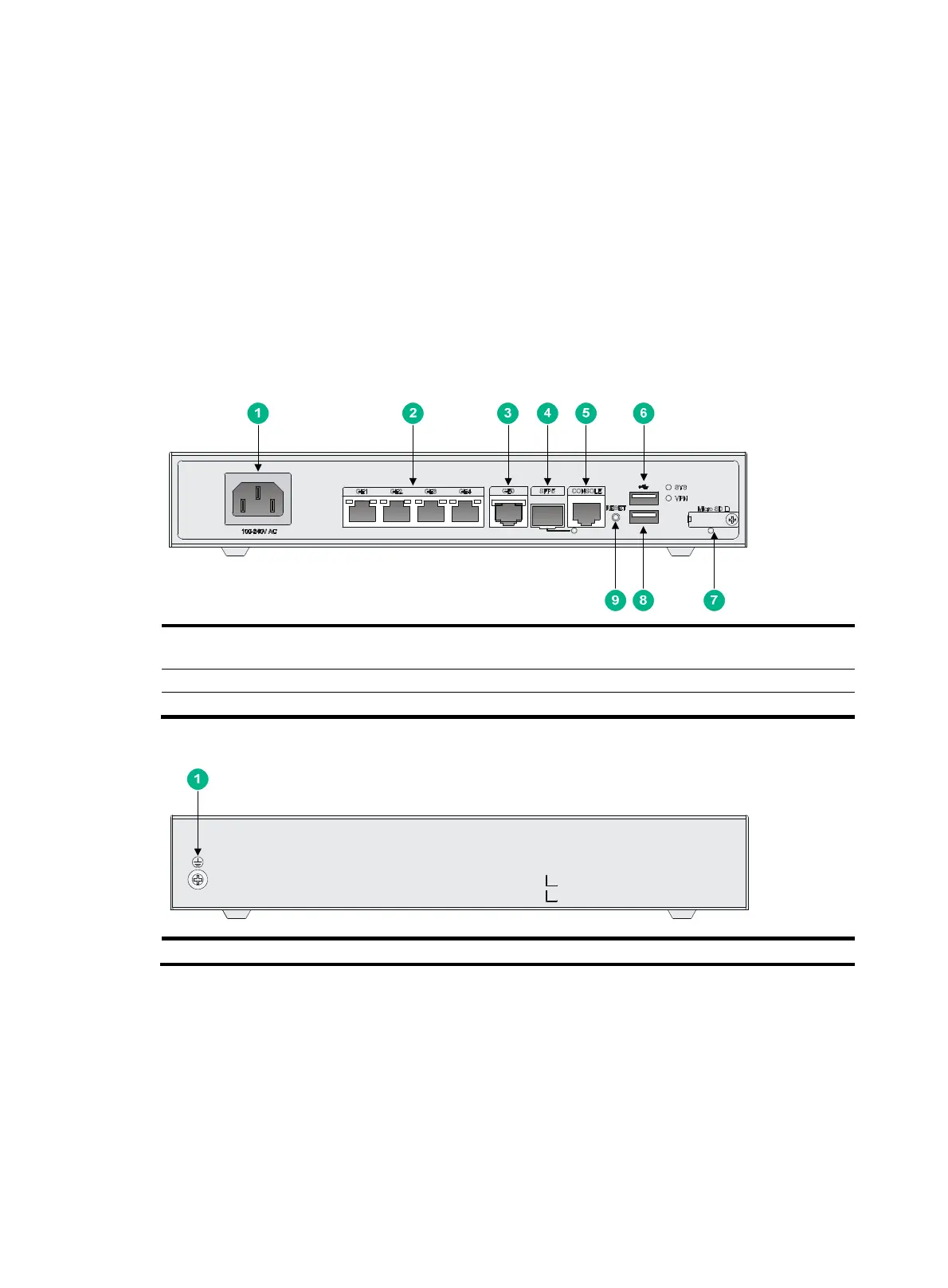

Figure 27 Front vie
w
(1) AC power receptacle
(2) Gigabit Ethernet LAN ports
(GE1 to GE4)
(3) Gigabit Ethernet WAN port (GE0)
(4) Gigabit fiber port (SFP5)
(5) Console port
(6) USB port
(7) Micro SD card slot
(8)
USB port
(9) Reset button (RESET)
Figure 28 Rear vie
w
(1) Grounding screw
32
34
Table of Contents
Table of Contents
3
Preparing for Installation
5
Safety Recommendations
5
Safety Symbols
5
General Safety Recommendations
5
Electricity Safety
5
ESD Prevention
6
Examining the Installation Site
6
Temperature and Humidity
6
Cleanliness
6
Cooling
7
Emi
7
Lightning Protection
7
Installation Accessories and Tools
8
Pre-Installation Checklist
9
Installing the Router
11
Installation Prerequisites
11
Installation Flowchart
11
Installing the Router
12
Mounting the Router on a Workbench
12
Mounting the Router on a Wall
13
Installing the Router in a Rack
14
Grounding the Router
16
Installing a 4G SIM Card (JH296A/JH297A/JH298A/JH299A)
18
Installing a 4G SIM Card (JH373A)
18
Installing a Micro SD Card
21
Installing a 4G Antenna
22
Connecting a 4G Antenna Extension Cable to a 4G Router
23
Installing a WLAN Antenna
23
Connecting Ethernet Interface Cables
24
Connecting the Console Cable and Setting Terminal Parameters
24
Connecting the Power Cord
25
Verifying the Installation
26
Accessing the Router for the First Time
26
Powering on the Router
26
Observing the Startup Process
26
Power-On Check
27
Configuring Basic Settings for the Router
28
Troubleshooting
29
Power Supply Failure
29
Symptom
29
Solution
29
No Display on the Configuration Terminal
29
Garbled Display on the Configuration Terminal
30
No Response from the Serial Port
30
Symptom
30
Solution
30
3G/4G SIM Card and 4G Antenna Failures
30
Restoring the Factory Settings
31
Scenario 1
31
Scenario 2
31
Scenario 3
31
Reset Button Usage Guidelines
31
Appendix A Chassis Views and Technical Specifications
33
Chassis Views
33
Jh296A
33
Jh297A
34
Jh298A
34
Jh299A
35
Jh373A
36
Technical Specifications
36
Appendix B Leds
38
Leds
38
Jh296A
38
Jh297A
38
Jh298A
39
Jh299A
39
Jh373A
40
LED Description
40
Document Conventions and Icons
43
Conventions
43
Network Topology Icons
44
Support and Other Resources
45
Accessing Hewlett Packard Enterprise Support
45
Accessing Updates
45
Websites
46
Customer Self Repair
46
Remote Support
46
Documentation Feedback
47
Index
