19
Connecting a 4G antenna extension cable to a
4G router
Only the JH373A router support 4G antenna extension cable.
A 4G antenna extension cable is not provided with the router. To use a 4G antenna extension cable,
purchase it separately.
To install a 4G antenna extension cable:
1. Thread the male connector of the cable through the hole on the bracket, and use screws
(from behind the bracket) to secure the male connector to the bracket.
2. Change the angle of the antenna orientation from vertical to horizontal.
3. Attach the antenna to the male connector of the cable.
4. Attach the female connector of the cable to the router.

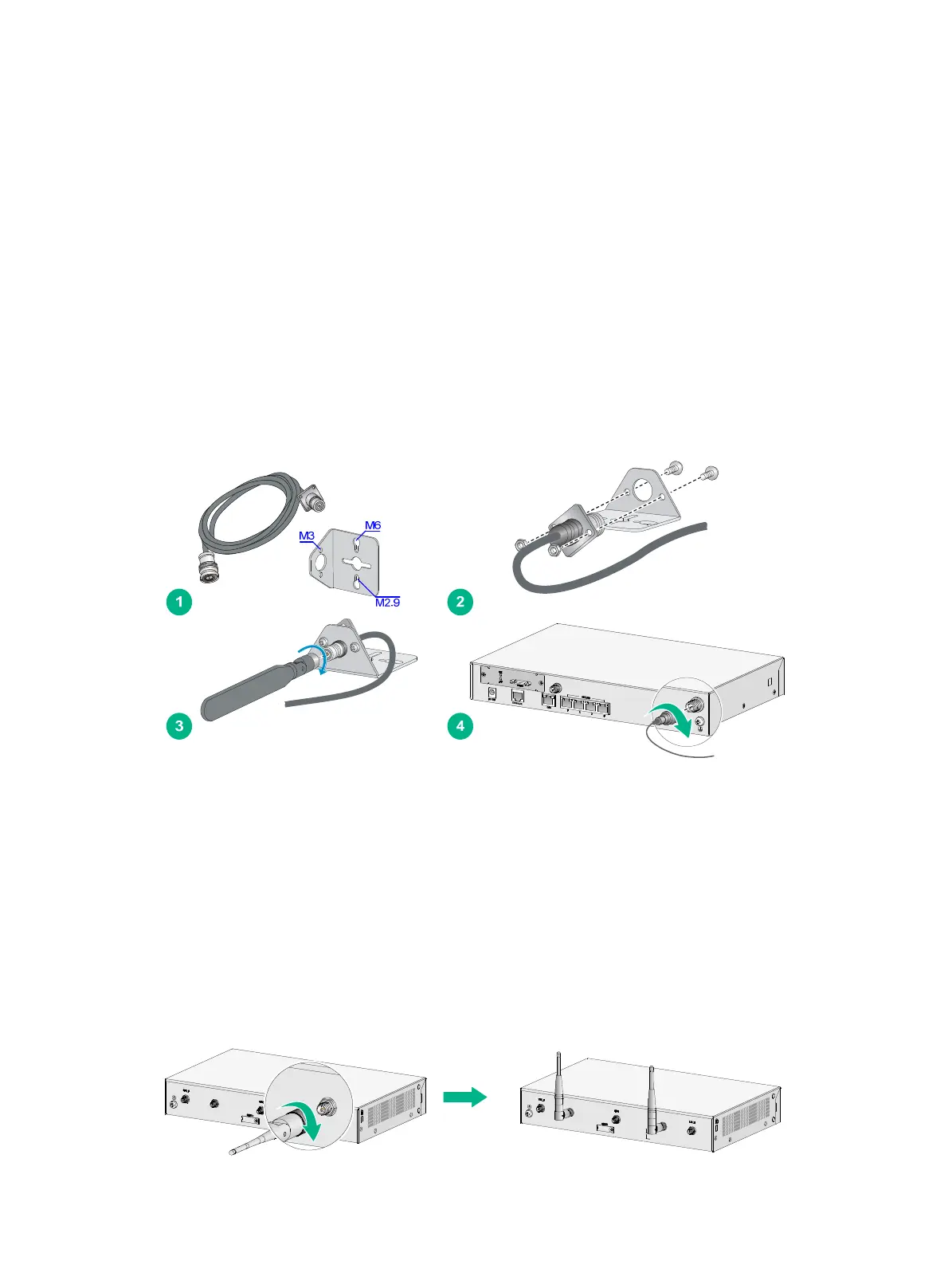

Figure 20 Installing the 4G antenna extension cable to a 4G router
Installing a WLAN antenna
Only the JH297A, JH298A, and JH299A routers support WLAN antennas.
To install a WLAN antenna:
1. Change the angle of the antenna orientation from vertical to horizontal.
2. Attach the antenna to the WLAN antenna port on the router. Do not over-tighten the antenna
to avoid damage.
For better signal receiving, change the antenna orientation to vertical.
Figure 21 Installing WLAN antennas
