Connector repair
This procedure includes HDMI, DisplayPort and audio connectors.

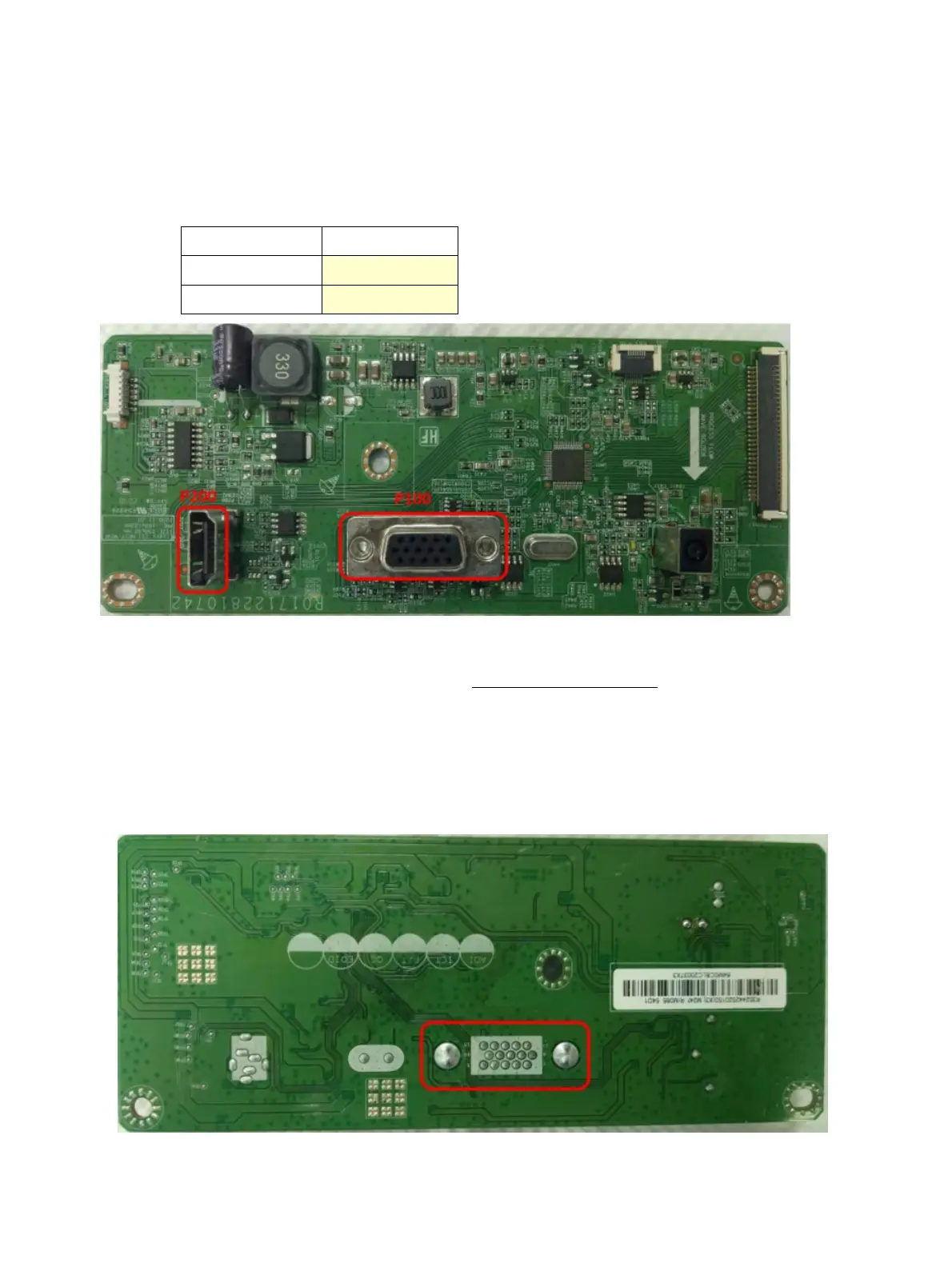

The connectors are on the main board (board part number 5E.49101.011).
The connectors identifiers are as follows:
Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 14
.
VGA P100
Repair the VGA connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently
push down with the soldering iron once everything is molten to move the P100 out of the through holes.
2) Lift the P100 connector from the PCB..
