14
Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 10
.

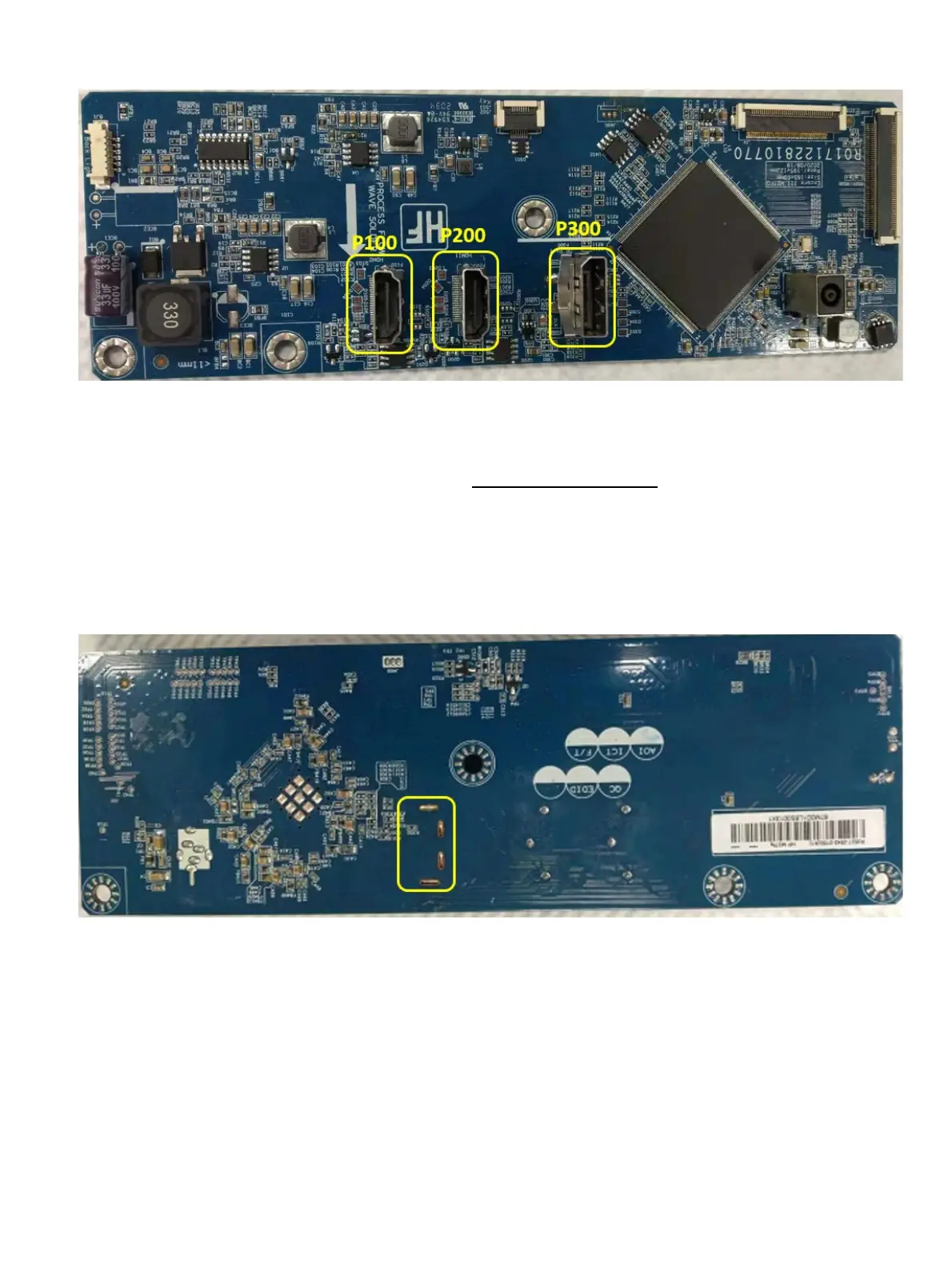

DP P300
Repair the DisplayPort connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently
push down with the soldering iron once everything is molten to move the P300 out of the through holes.
2) Use a soldering iron or hot air gun to melt the solder on the pins.
To Next Page
