This procedure includes VGA, HDMI connectors.

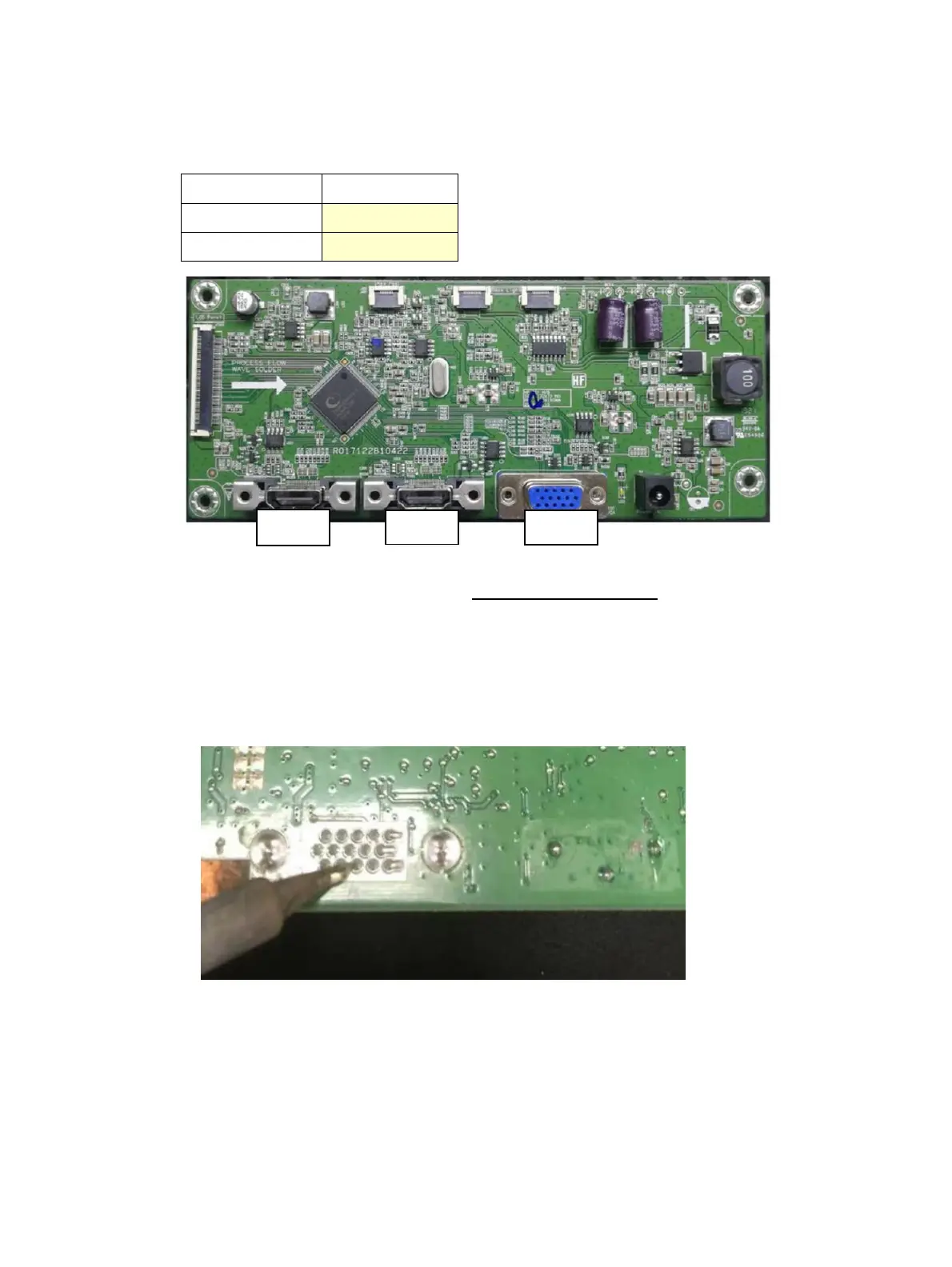

The connectors are on the main board.
The connectors identifiers are as follows:
Connector
Location
VGA
P100
HDMI P200/P201
Before repairing connectors, follow these steps:
Prepare the monitor for disassembly. See Preparation for disassembly
on page 9.
VGA P100
Repair the VGA connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently
push down with the soldering iron once everything is molten to move the P100 out of the through holes.
2) Lift the P100 connector from the PCB..
3) Place the new component on the PCB. Be sure that it matches the PCB footprint.
4) Solder the new component.
P100
P200
P201
