1. Use a #1 Phillips (cross-head) screwdriver and attach the mounting brackets to the controller
with the included 8 mm M4 screws.

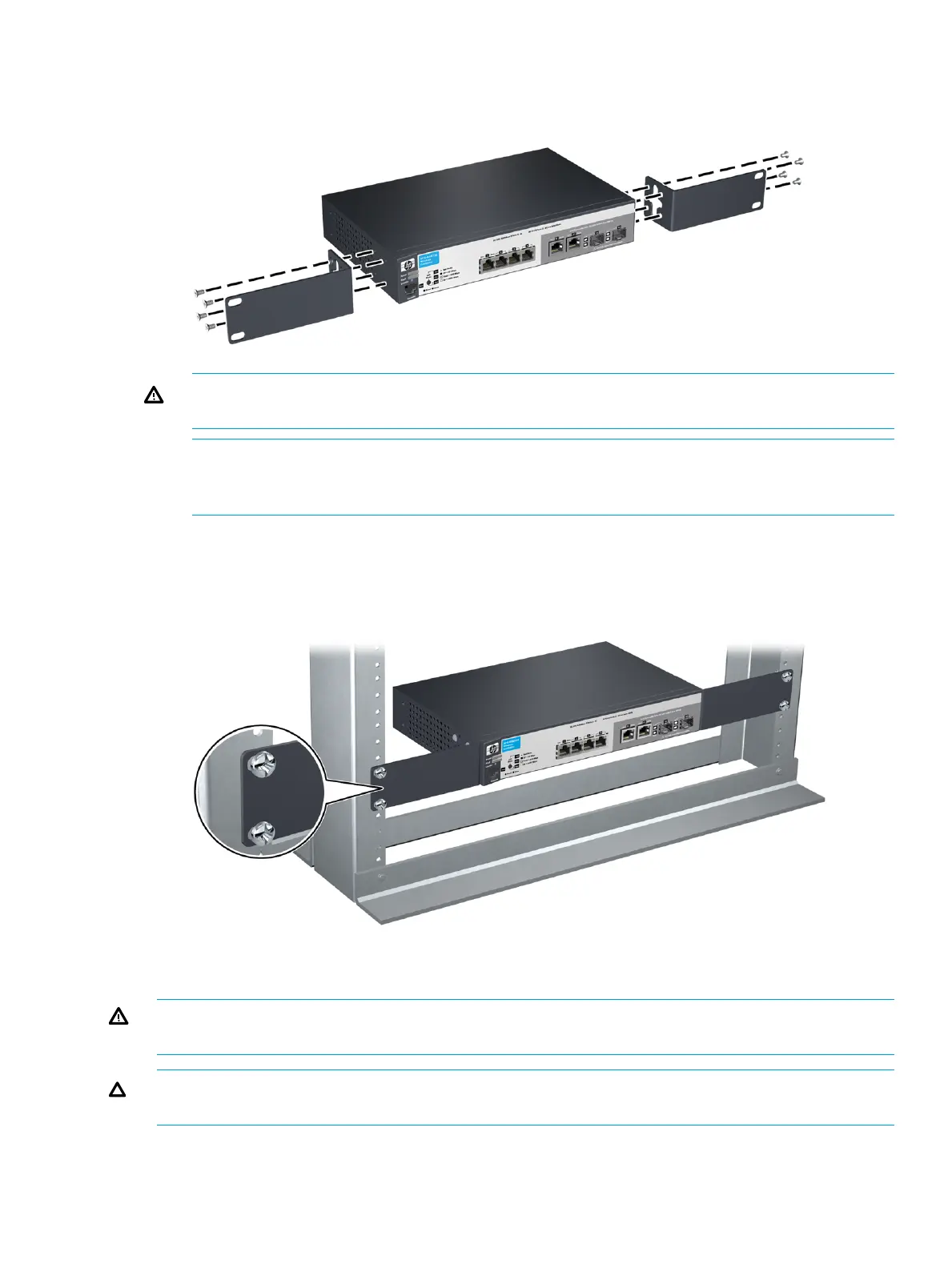

Figure 5 Attaching mounting brackets
WARNING! For safe reliable installation, only use the screws provided in the accessory kit
to attach the mounting brackets to the controller.
NOTE: The mounting brackets have multiple mounting holes and can be rotated allowing
for a wide variety of mounting options. These include mounting the controller so that its front
face is flush with the face of the rack, or mounting it in a more balanced position.
2. Hold the controller with attached brackets up to the rack and move it vertically until rack holes
line up with the bracket holes, then insert and tighten the four number 12-24 screws holding
the brackets to the rack.
Figure 6 Mounting in a rack
Wall mounting
WARNING! The network ports must be facing up. Do not mount the controller with ports facing
down.
CAUTION: The controller should be mounted on a wall or wood surface that is at least 12.7 mm
(1/2 inch) plywood or its equivalent.
1. Use a #1 Phillips (cross-head) screwdriver and attach the mounting brackets to the controller
with the included 8 mm M4 screws.
Installation procedures 11
