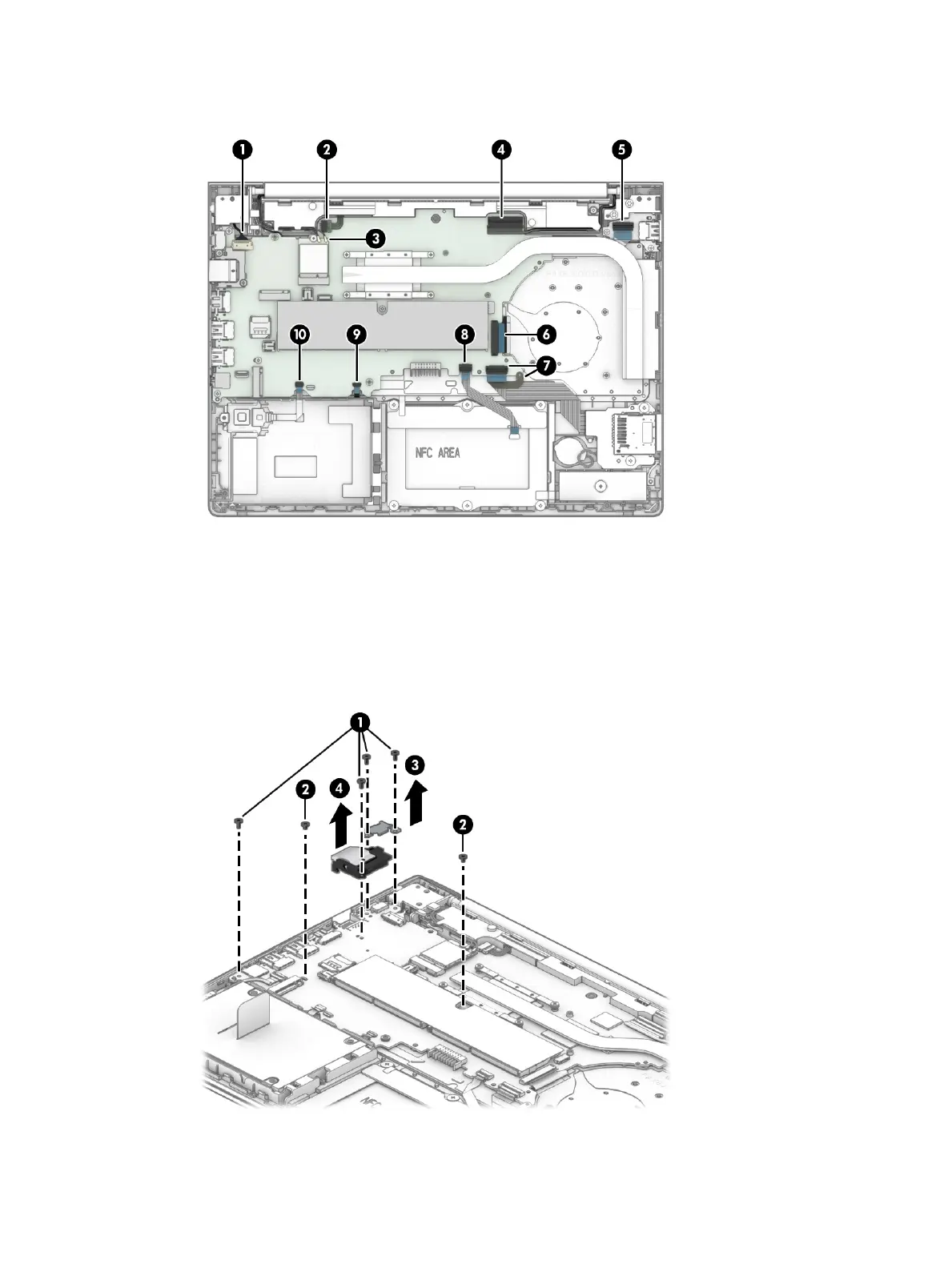

(10) Fingerprint sensor cable (ZIF)
2. Remove the four Phillips M2.0 × 4.0 screws (1) that secure the system board to the computer.
3. Remove the two Phillips M2.0 × 2.5 screws (2) that secure the system board to the computer.
4. Remove the bracket that covers the USB-Type C port (3).
5. Remove the RJ-45 jack cover (4).
The USB bracket and RJ-45 jack cover are available in the Bracket Kit as spare part number L77264-001.
6. Rotate the right side of the system board upward (1).
Component replacement procedures 49
