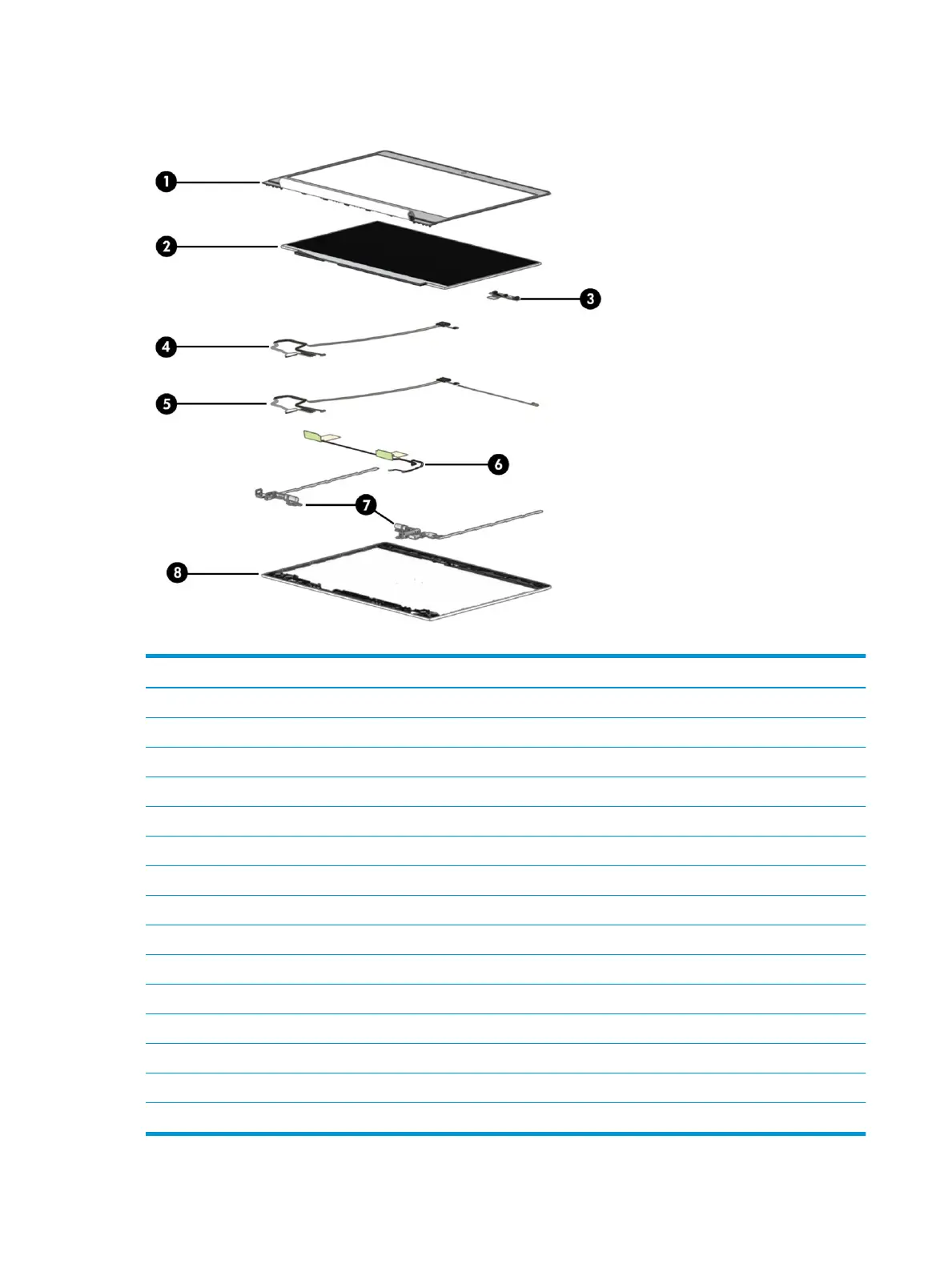

Display components
Table 3-2 Display components and their descriptions
Item Description Spare part number
(1) Display bezel
For use in models without a camera L78090-001
For use in models with an HD camera L78091-001
(2) Display panel (raw) (includes bezel adhesive and display enclosure adhesive)
HD panel L97217-001
FHD panel, touch-on panel (TOP) L97216-001
Display/camera cable assembly (includes bezel adhesive and display enclosure adhesive)
(3) Camera module, HD (includes bezel adhesive and display enclosure adhesive) L81889-001
Microphone board (not illustrated) L44541-001
(4) Nontouch models L78088-001
(5) Touch models L78089-001
(6) WLAN antennas (includes bezel adhesive and display enclosure adhesive) L78070-001
(7) Hinge Kit (left and right hinges; includes bezel adhesive and display enclosure adhesive) L78093-001
(8) Display rear cover (includes wireless antennas and bezel adhesive) L78072-001
Camera privacy cover (not illustrated) L77237-001
18 Chapter 3 Illustrated parts catalog
