3 Illustrated parts catalog
To identify the monitor major components, use this illustration and table.

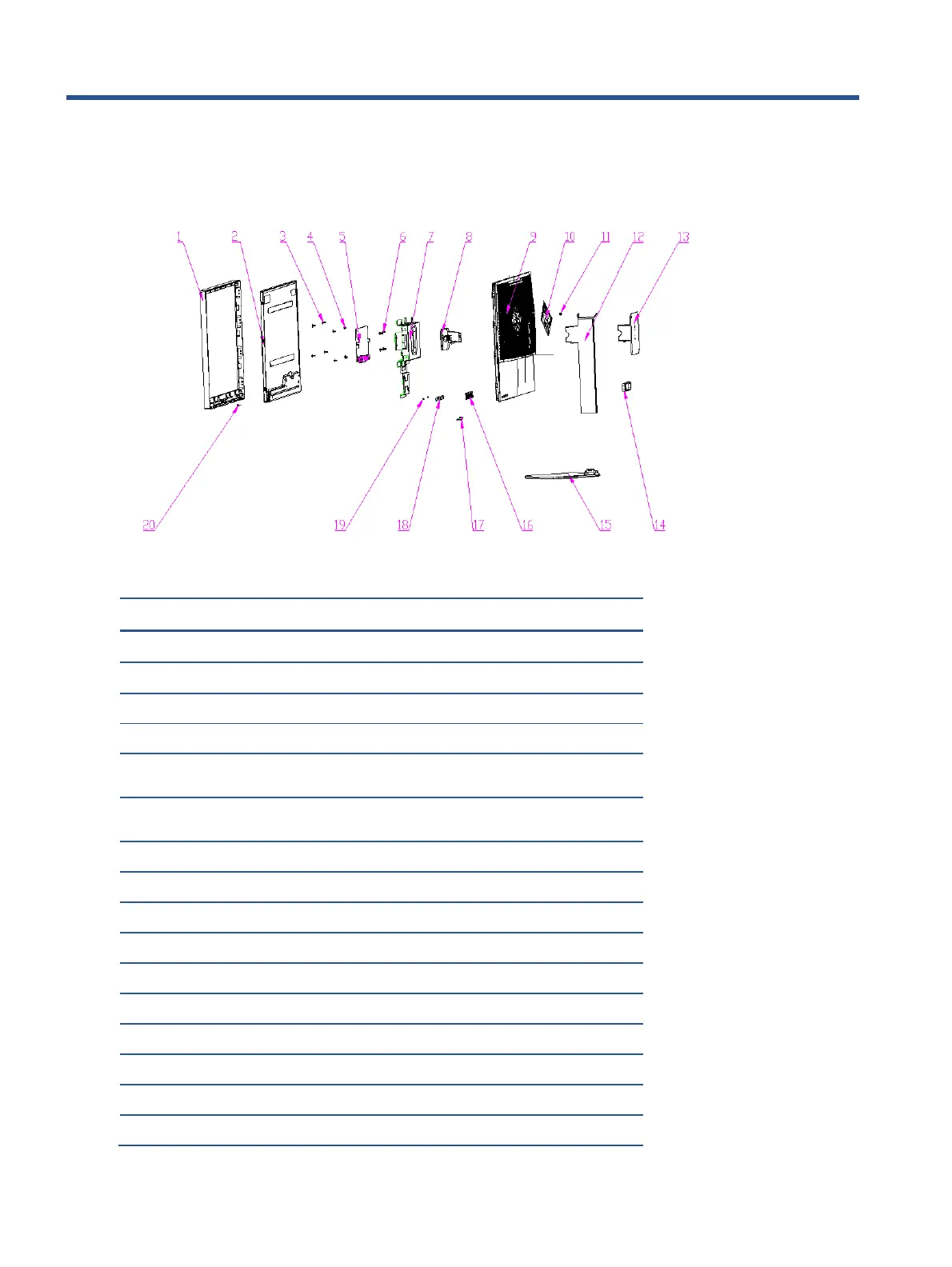

Mechanical explosion
Item
Description
Qty
1
FRONT BEZEL, OMEN by HP 25, HF
1
2
panel
1
3
SCREW, I, CROSS T, T3*5 ZN
4
4
SCREW, P, CROSS M3*6, ZN-CC
4
5
PCBA, IF/B, W/OSP, LP25Q3-71L/OMEN by HP
25
1
6
SCREW, I, CROSS, M4*6, BLK-Zn, HF
(NYLOK)&nbs
4
7
ASSY, CHASSIS, OMEN, HF
1
8
ASSY, STAND HINGE, OMEN, HF
1
9
REAR COVER, OMEN, HF
1
10
REAR VOODOO LOGO, OMEN, HF
4
11
REAR OMEN LOGO, OMEN, HF
1
12
ASSY, ARM OF STAND, OMEN, HF
4
13
ASSY, WALL MOUNT, OMEN, HF
1
14
CABLE MANAGEMENT OF ARM, OMEN, HF
1
15
ASSY, BASE OF STAND, OMEN, HF
1
16
KEY BUTTON, OMEN, HF
1
