15
4) Place the new component on the PCB. Be sure that it matches the PCB footprint.
5) Solder the new component.
DC jack connector CN801
Repair the DC jack connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently
push down with the soldering iron once everything is molten to move the CN201 out of the through holes.

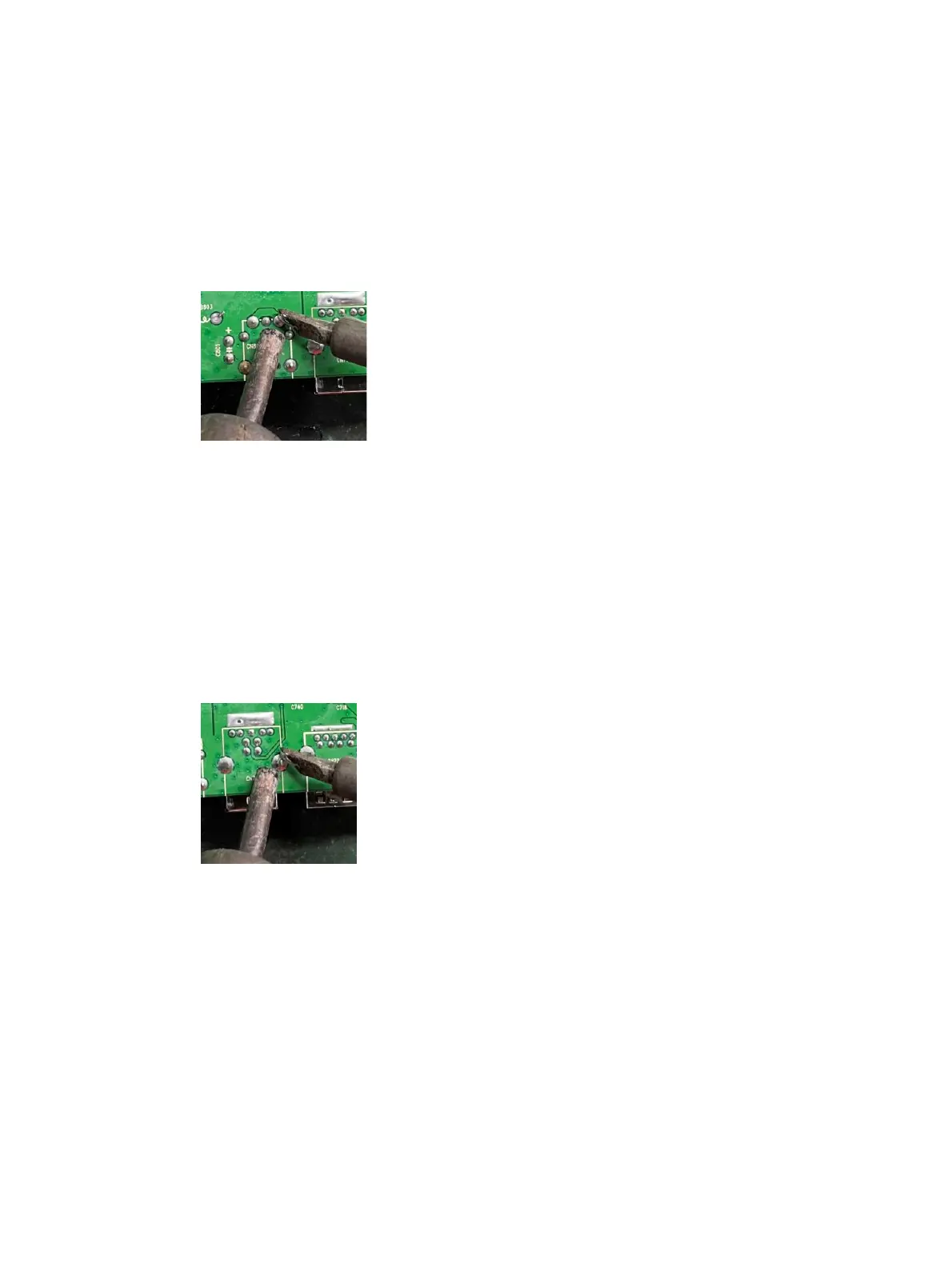

DC Jack connector repairing
2) Lift the CN801 connector from the PCB.
3) Place the new component on the PCB. Be sure that it matches the PCB footprint.
4) Solder the new component.
USB upstream connector CN701
Repair the USB upstream connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently
push down with the soldering iron once everything is molten to move the CN602 out of the through holes.
USB upstream connector repairing
2) Lift the CN701 connector from the PCB.
3) Place the new component on the PCB. Be sure that it matches the PCB footprint.
4) Solder the new component.
USB connector CN702, CN703
Repair the USB connector:
1) Use a hot air gun to melt the solder on the pins. Pin solder with soldering iron and absorber. You can gently
push down with the soldering iron once everything is molten to move the P101, P102 out of the through
holes.
