13

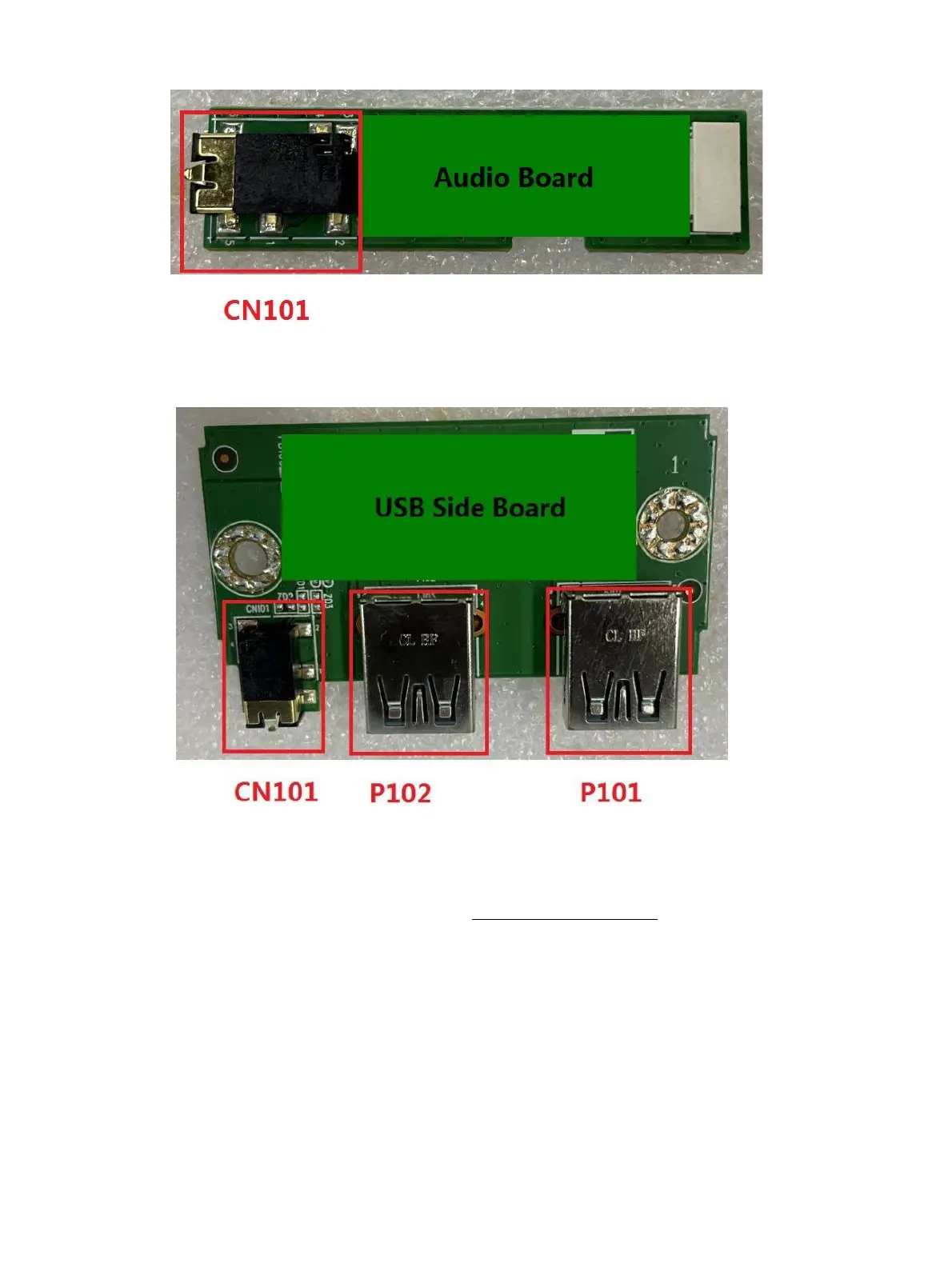

Audio Jack location of audio board
Connector location showing of USB side board
Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 9.
HDMI connector CN301, CN302
Repair the HDMI connector:
1) Use a soldering iron and a desoldering pump to remove as much solder as possible from the pin.
