The connectors are on the main board (board part number 790N41300***H01) and USB side board (board part
number 790N40300***H0*).
The connectors’ identifiers are as follows:
Connector
Location
HDMI
CN301,CN302
DisplayPort
CN401
USB upstream
CN701
USB
CN702,CN703
DC jack
CN801

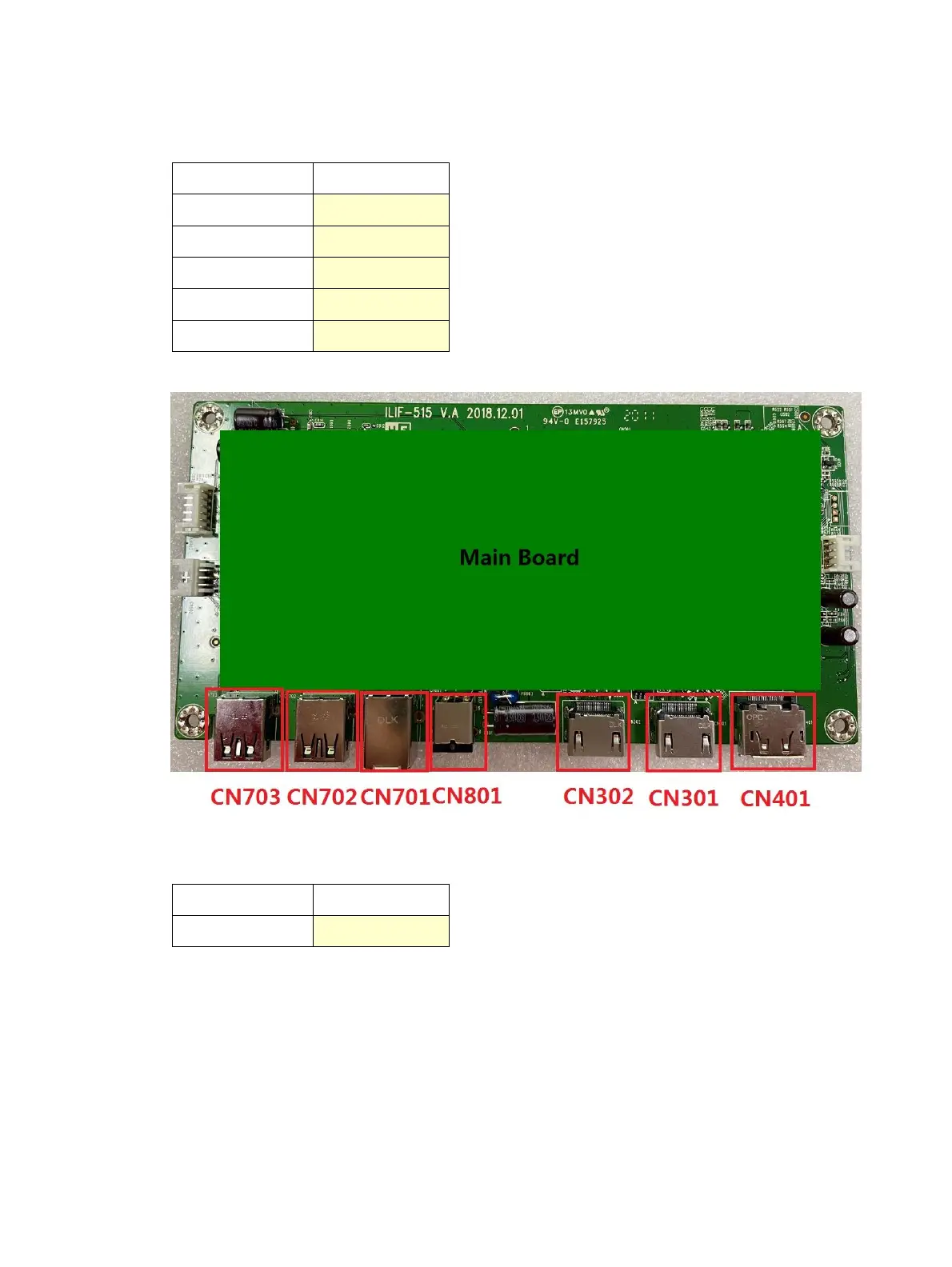

Connector location showing of main board
Connector
Location
Headphone
CN101
