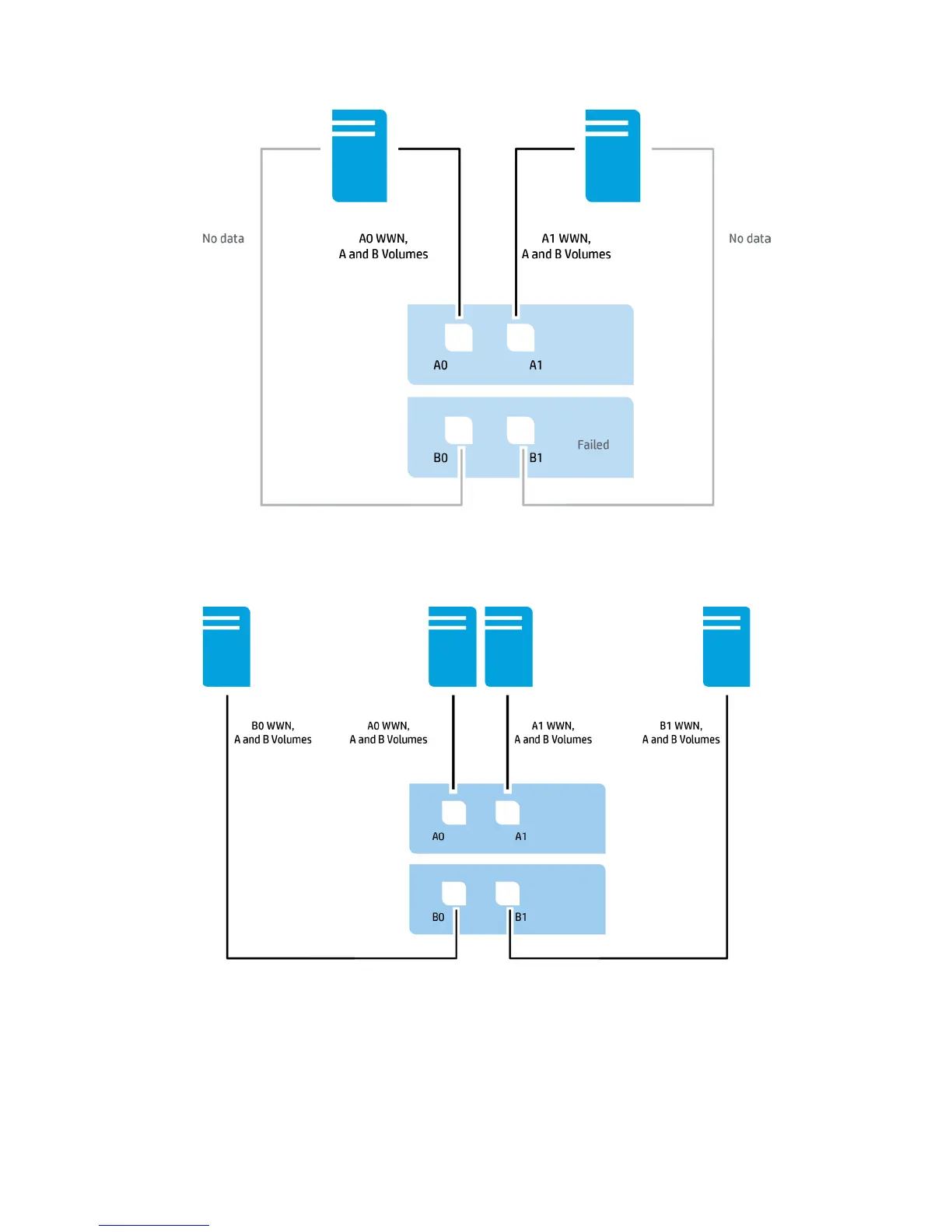

Figure 4. FC storage presentation during failover (high-availability, dual-controller, and direct attach with two hosts)
In the following configuration, each host has a non-redundant connection to all mapped volumes. If a controller fails, the
hosts connected to the surviving controller maintain access to all volumes owned by that controller. The hosts connected to
the failed controller will lose access to volumes owned by the failed controller.
Figure 5. FC storage presentation during normal operation (high-availability, dual-controller, direct attach with four hosts)
