HP P6000 Installation Guide

NOTE: The iSCSI/FCoE modules also support 10 GbE SFP+ optical transceivers, LC-LC optical
inter-rack cables, and SFP+ copper intra-rack cables.

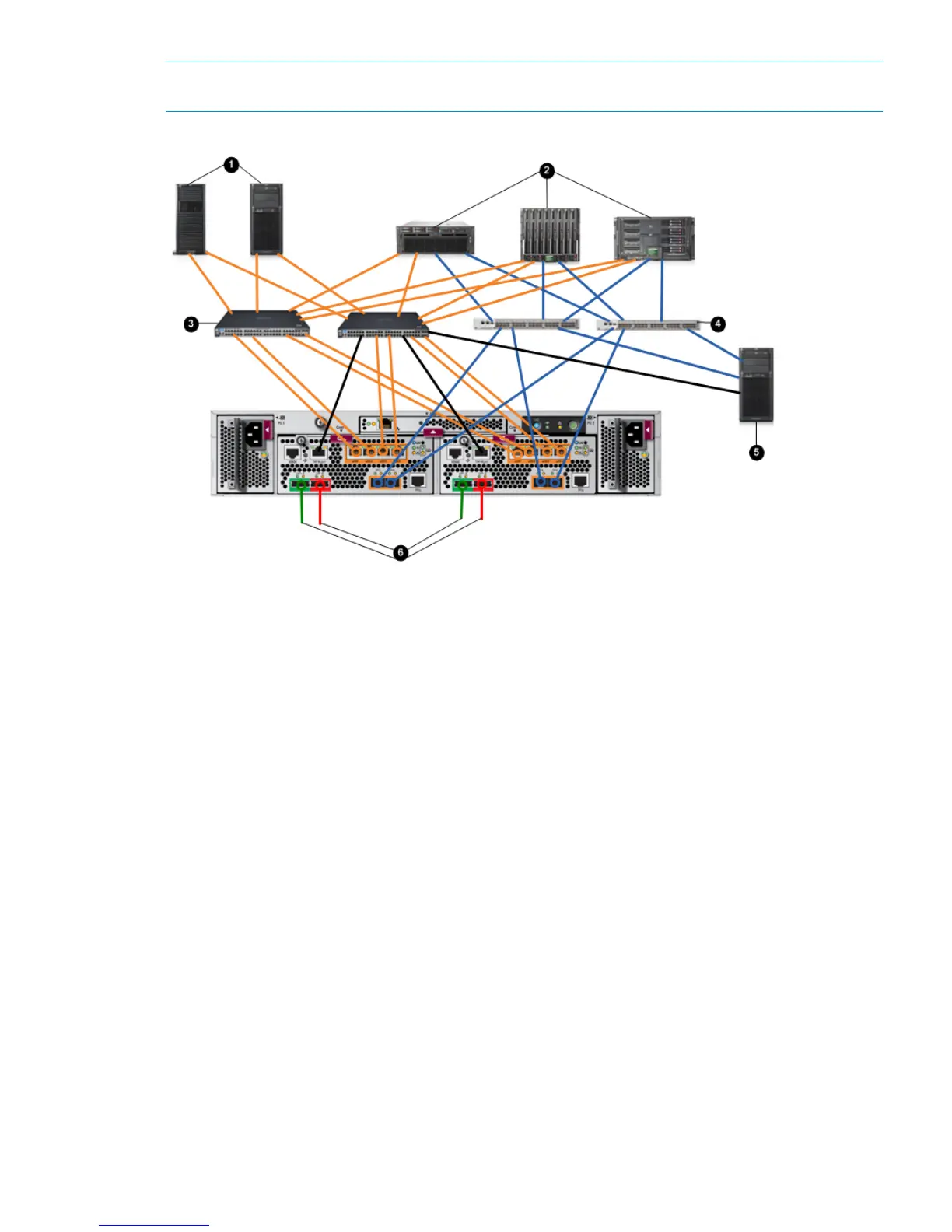

Figure 60 P6300 iSCSI and FC connections
4. SAN switches1. Isolated servers
5. Management server running HP P6000 Command View2. Datacenter servers with FC and Ethernet
adapters
6. Cabling connections to disk enclosures3. Ethernet switches
Connecting the P6300/P6500 EVA to servers and switches 71

HP P6000 Specifications

General

RAID Levels Supported	0, 1, 5, 6, 10
Form Factor	Rack-mountable
Hard Drive Form Factor	2.5", 3.5"
Drive Types Supported	SAS, SSD, SATA
Redundancy	Redundant power supplies
Host Connectivity	Fibre Channel, iSCSI
Operating Temperature	10° to 35°C (50° to 95°F)
