HP Pavilion 14 Notebook PC User Manual

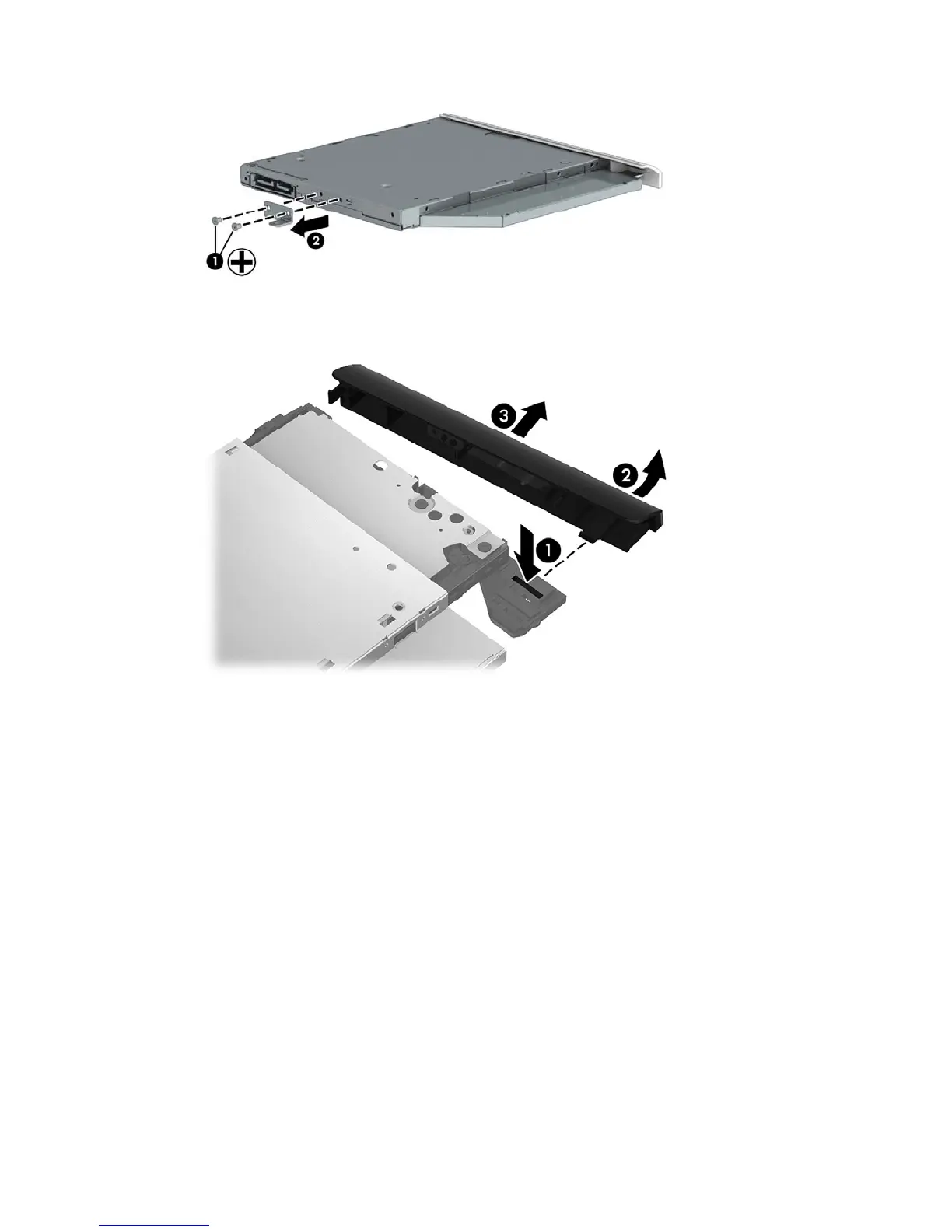

2. Remove the tab from the drive (1). Rotate the left side of the bezel outward (2), and then remove the
bezel (3).
Reverse this procedure to reassemble and install the optical drive.
Component replacement procedures 33

HP Pavilion 14 Notebook PC Specifications

General

Processor	Intel Core i3, i5, or i7
Display	14-inch diagonal HD or FHD (1366 x 768 or 1920 x 1080)
RAM	4GB, 8GB, or 16GB
Storage	128GB/256GB/512GB SSD
Graphics	NVIDIA GeForce
Operating System	Windows 10 or Windows 11
Ports	HDMI, Headphone/Microphone combo jack, SD card reader
Wireless	Bluetooth
