Power connector cable
Description Spare part number
Power connector cable (includes bracket) 767246-001
Before removing the power connector cable, follow these steps:
1. Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the battery (see
Battery on page 29), and then remove the following components:
a. Service door (see
Service door on page 30)
b. Optical drive (see
Optical drive on page 32)
c. Top cover (see
Top cover on page 39)
d. System board (see
System board on page 49)
Remove the power connector board:
NOTE: One of the power connector bracket screws was removed when removing the system board.

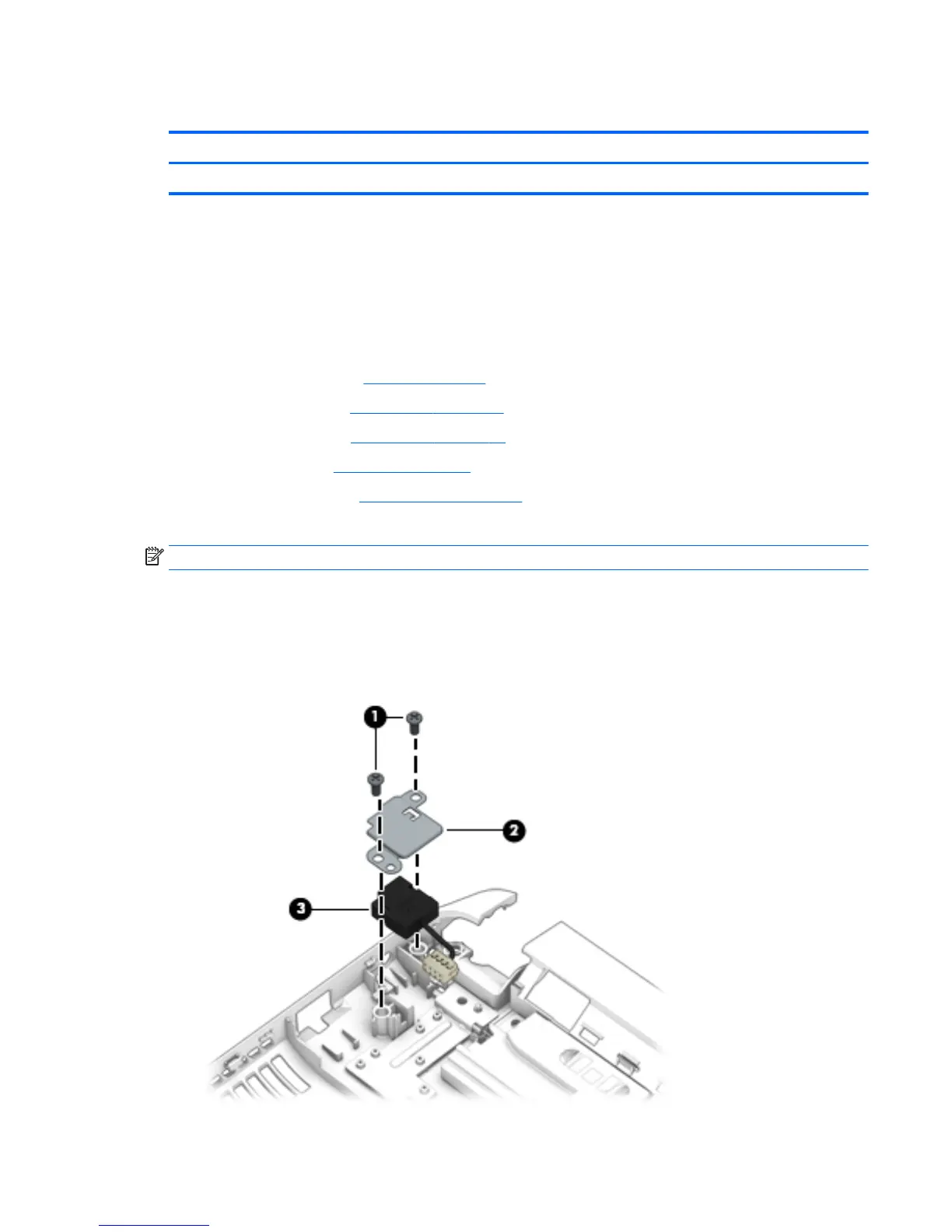

1. Turn the system board upside down, with the front toward you.
2. Remove the Phillips P2.5x4.0 screw from the power bracket (1).
3. Remove the power bracket (2).
4. Release the power connector from the clip built into the system board (3).
Component replacement procedures 57
