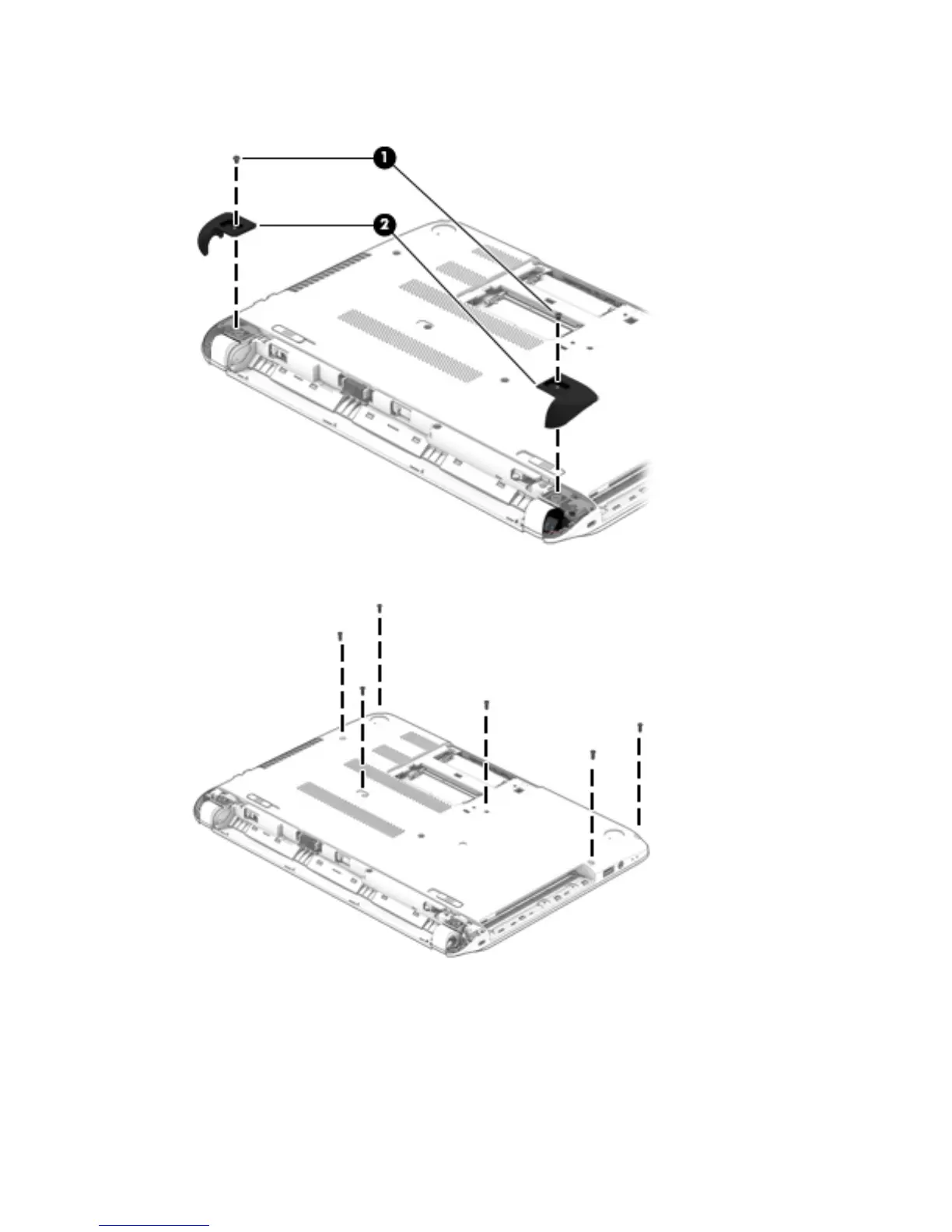

3. Remove the two Phillips M2.5x1.5 screws that secure the rear corner covers (1). Remove the rear corner
covers (2). The rear corner covers are included in the Plastics Kit, spare part number 767259-001.
4. Remove the six Phillips M2.5×4.0 screws that secure the top cover to the base enclosure.
5. Remove the three Phillips PM4.5×2.0 broad head screws (1) in the optical drive bay that secure the top
cover to the computer.
6. Remove the two Phillips M2.5x4.0 screws (2) in the corners that secure the top cover to the computer.
