HP Pavilion 14 Notebook PC User Manual

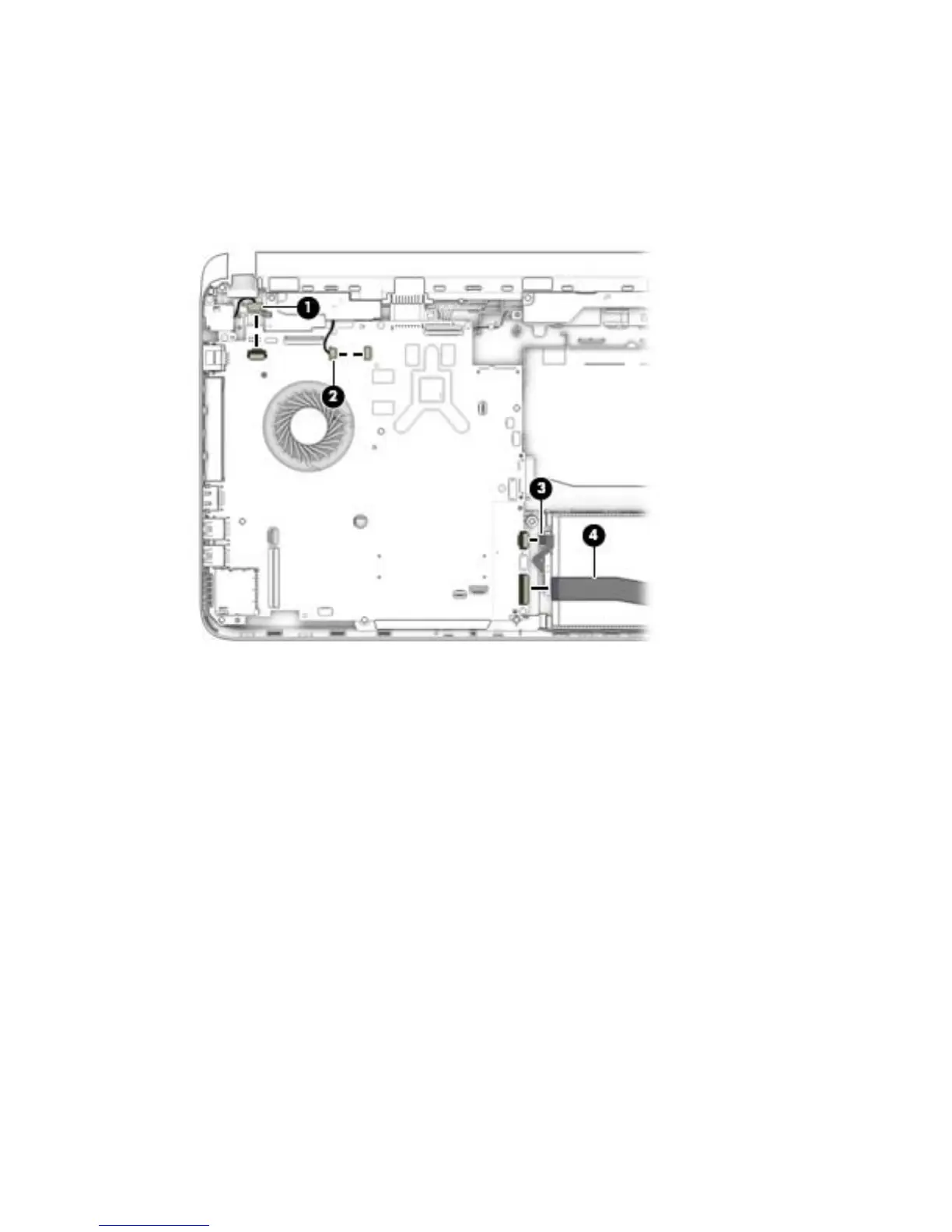

1. Disconnect the following cables from the system board:
●
Display panel cable (1)
●
Speaker cable (2)
●
Hard drive cable (3)
●
USB/audio board cable (4)
2. Remove the five Phillips M2.5x4.0 screw (1) that secure the system board to the base enclosure.
3. Lift the right side of the system board (2) until it rests at an angle.
50 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

HP Pavilion 14 Notebook PC Specifications

General

Processor	Intel Core i3, i5, or i7
Display	14-inch diagonal HD or FHD (1366 x 768 or 1920 x 1080)
RAM	4GB, 8GB, or 16GB
Storage	128GB/256GB/512GB SSD
Graphics	NVIDIA GeForce
Operating System	Windows 10 or Windows 11
Ports	HDMI, Headphone/Microphone combo jack, SD card reader
Wireless	Bluetooth
