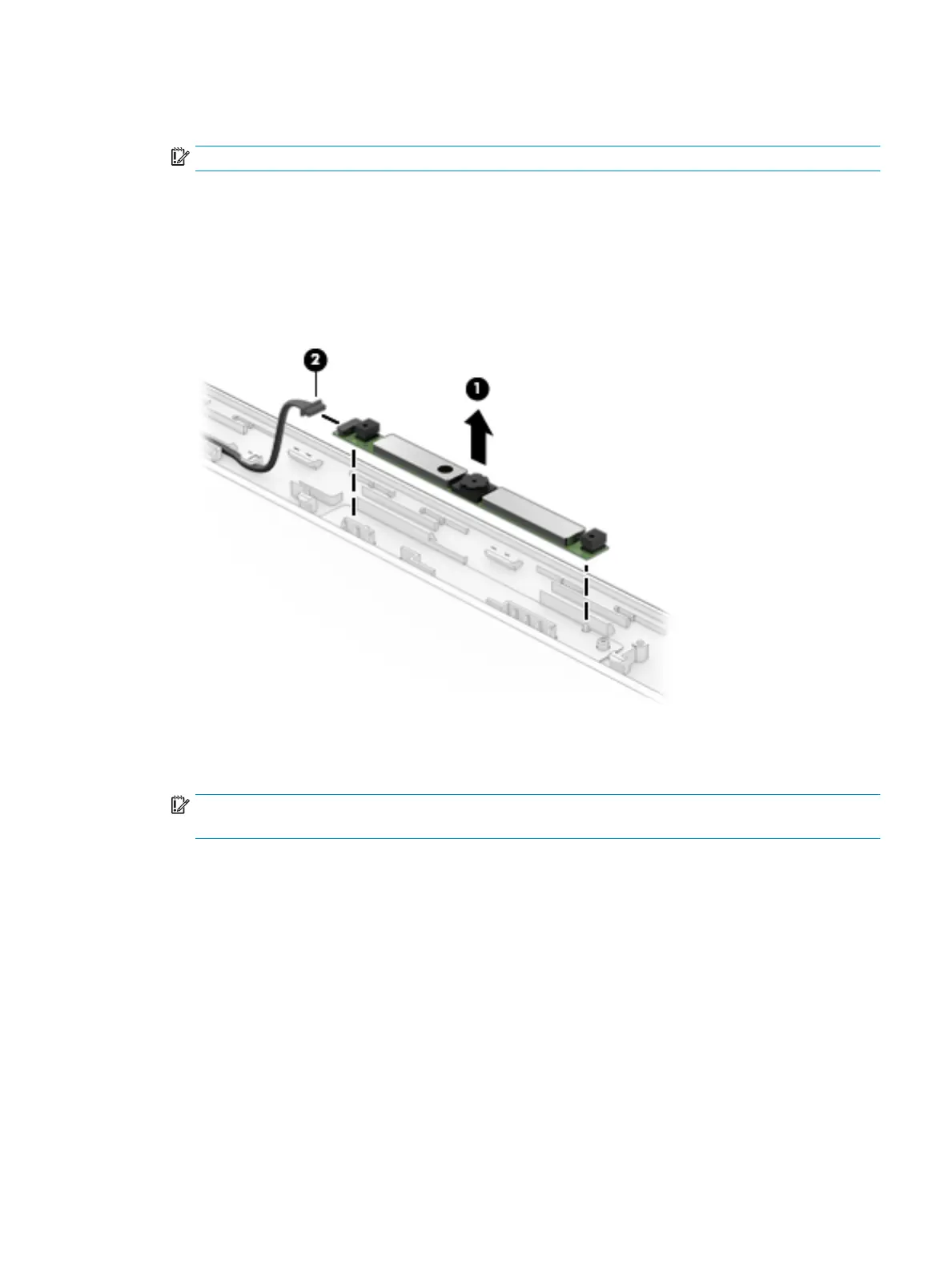

8. If it is necessary to remove the camera, use a tool and lift the camera module to disengage the adhesive
that secures it to the enclosure (1), and then disconnect the cable (2) from the module.
IMPORTANT: The camera module is fragile. Use care not to damage it during removal.
Camera are available using the following spare part numbers:
781624-005: NM USB 3.0 1080p Intel 3D (only for 15-bc300~399, 15-bc400~499 models)
833962-011: DM USB 2.0 Mjpeg 720p VDH2 PA (only for 15-bc300~399, 15-bc400~499 models)
846006-003: DM USB 2.0 Mjpeg 720p VDH SF (only for 15-bc300~399, 15-bc400~499 models)
L02666-001: DM USB 2.0, HD, Mjpeg, VDHC, TL (used in all models)
9. If it is necessary to remove the display panel from the enclosure, remove the four Phillips M2.0 × 2.5
screws from the display panel (1), and then lift the top of the panel (2) over and place it next to the
enclosure.
IMPORTANT: A cable connects to the bottom of the back of the display panel. When lifting the panel,
be sure not to accidentally pull the cable from the connector.
Display panels are available using the following spare part numbers:
Non-touch for use in the following models: 15-bc300~399, 15-bc400~499
●
752920-012: FHD, UWVA
●
798933-015: FHD, SVA
●
842484-003: UHD
Non-touch for use in the following models: 15-dp000~0999
●
L43002-001: FHD, SVA
●
L43003-001: FHD, UWVA
Touch models:
●
859098-001: FHD
Component replacement procedures 61
