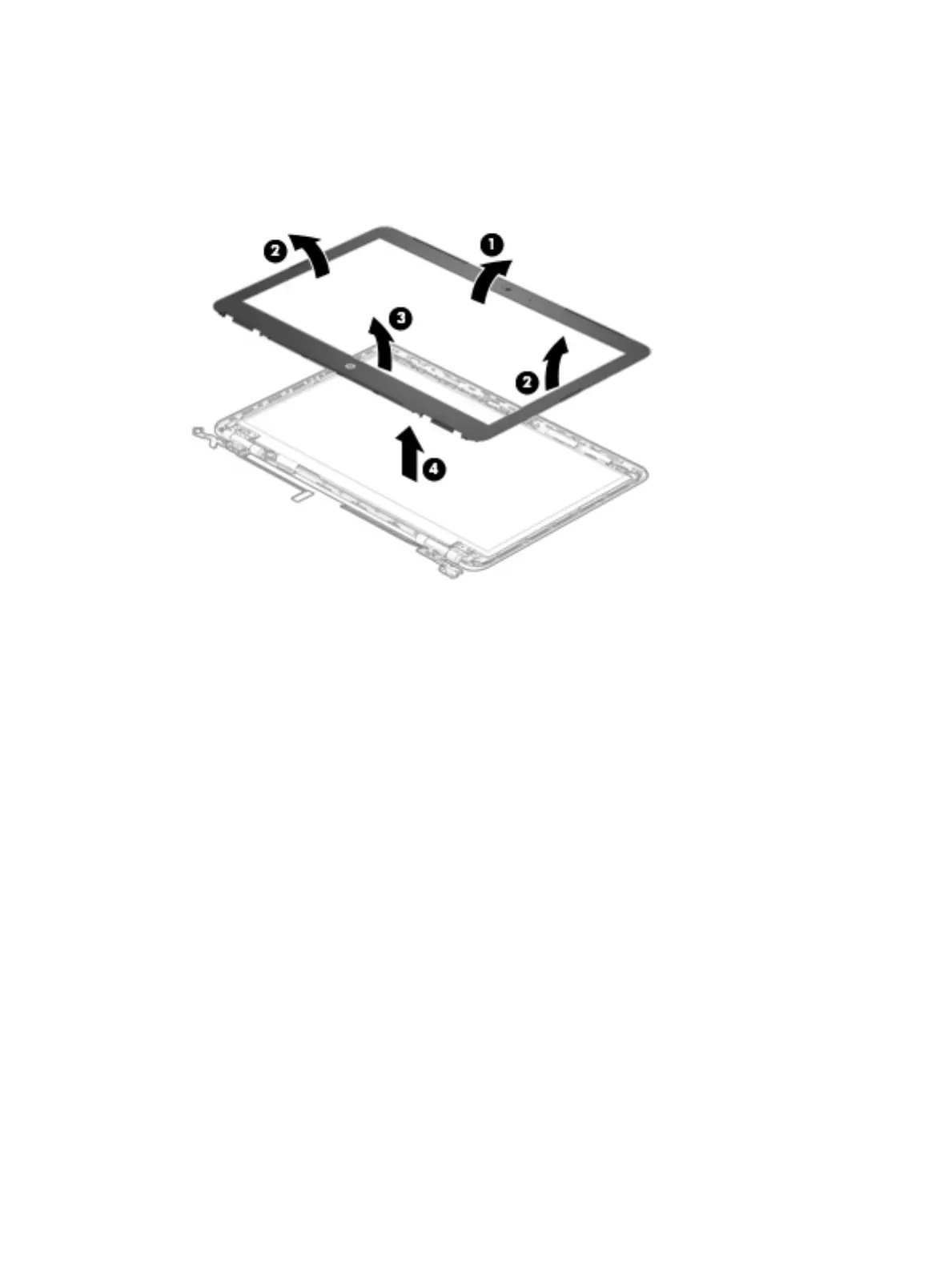

7. Using a non-marking, non-conductive pry tool, starting on the top edge (1), loosen the display bezel,
disconnecting the plastic clips to release the edge of the bezel. Continue on the left and right edges (2)
and then bottom edge (3), and then lift the display bezel (4) to remove it.
Display bezels are available using spare part number 856725-001 for non-touch panels and
856726-001 for touch panels.
60 Chapter 5 Removal and replacement procedures for authorized service provider parts
