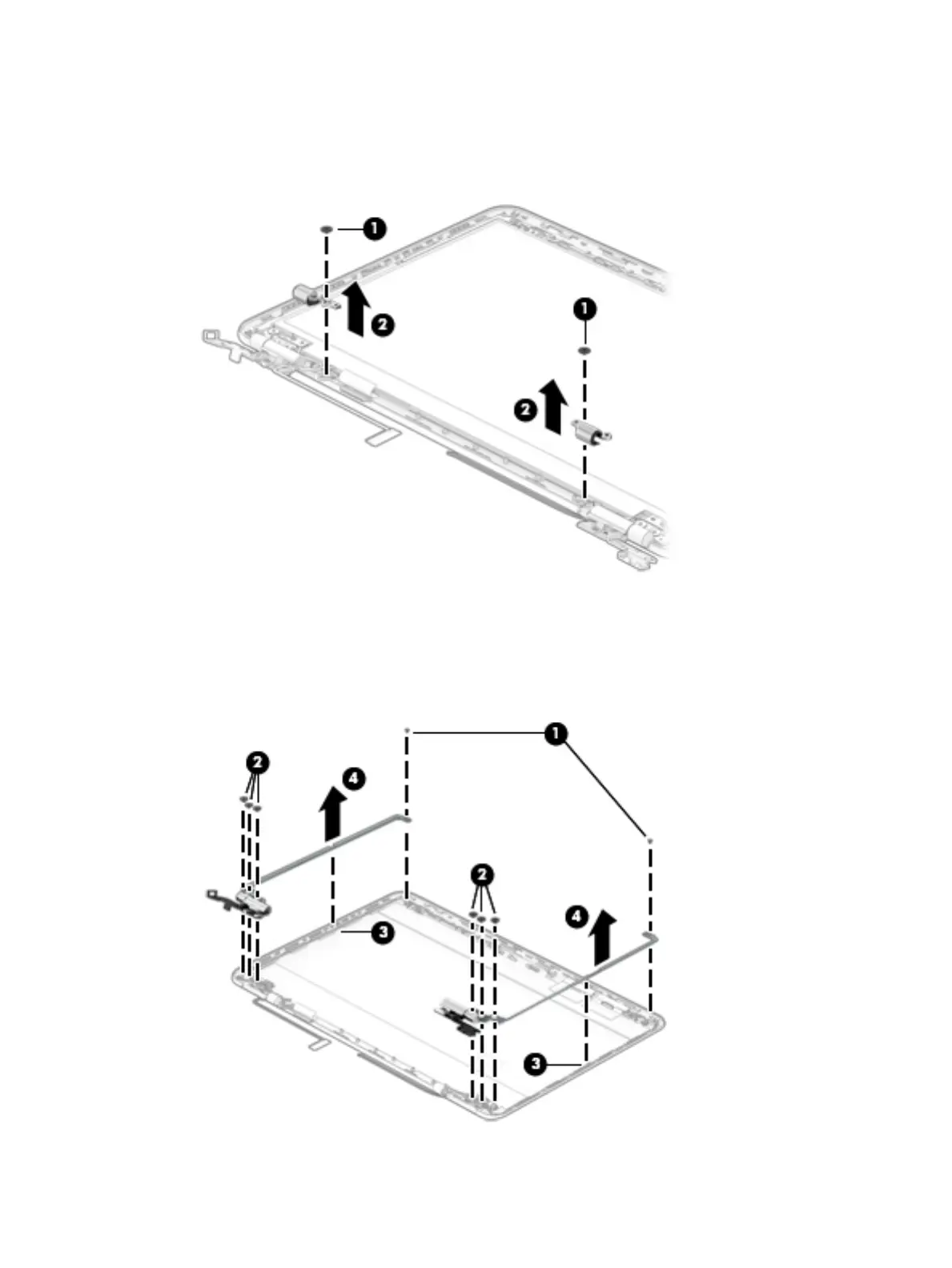

12. If it is necessary to remove the display hinges, remove the Phillips M2.0 × 2.0 screw from each hinge
cover (1), and then remove the hinge covers from the enclosure (2).
All hinge covers and caps are available using spare part number 859737-001 for non-touch models and
856748-001 for touch models.
13. Remove Phillips M2.5 × 3.0 screw from the top of each hinge bracket (1) and three broad head Phillips
M2.5 × 3.0 screws from each hinge (2). Remove the hinge brackets from the clips in the sides of the back
cover (3), and then lift the hinge brackets (4) to remove them.
Hinges are available using spare part number 856741-001 for non-touch models and 856742-001 for
touch models.
Component replacement procedures 63
