Table 3-2 Display component descriptions and part numbers (continued)
Item Component Spare part number
(4) Hinges (includes left and right display hinges) M52789-001
(5) Wireless antenna kit (dual) M52780-001
Wireless antenna kit (single) (not illustrated) M52779-001
(6) Display panel cable
For use with WUXGA panels M52813-001
For use with WQXGA panels M52814-001
(7) Camera cable M52809-001
(8) Display back cover
For use on models with dual wireless antennas:
● Natural silver M52781-001
● Ceramic white M52782-001
● Pale rose gold M52783-001
● Warm gold M52784-001
For use on models with a single wireless antenna:
● Natural silver M52957-001
● Ceramic white M52958-001
● Pale rose gold M52959-001
● Warm gold M52960-001
Adhesive tape kit
(includes display panel adhesive and display bezel adhesive; not illustrated) M52817-001
Cables

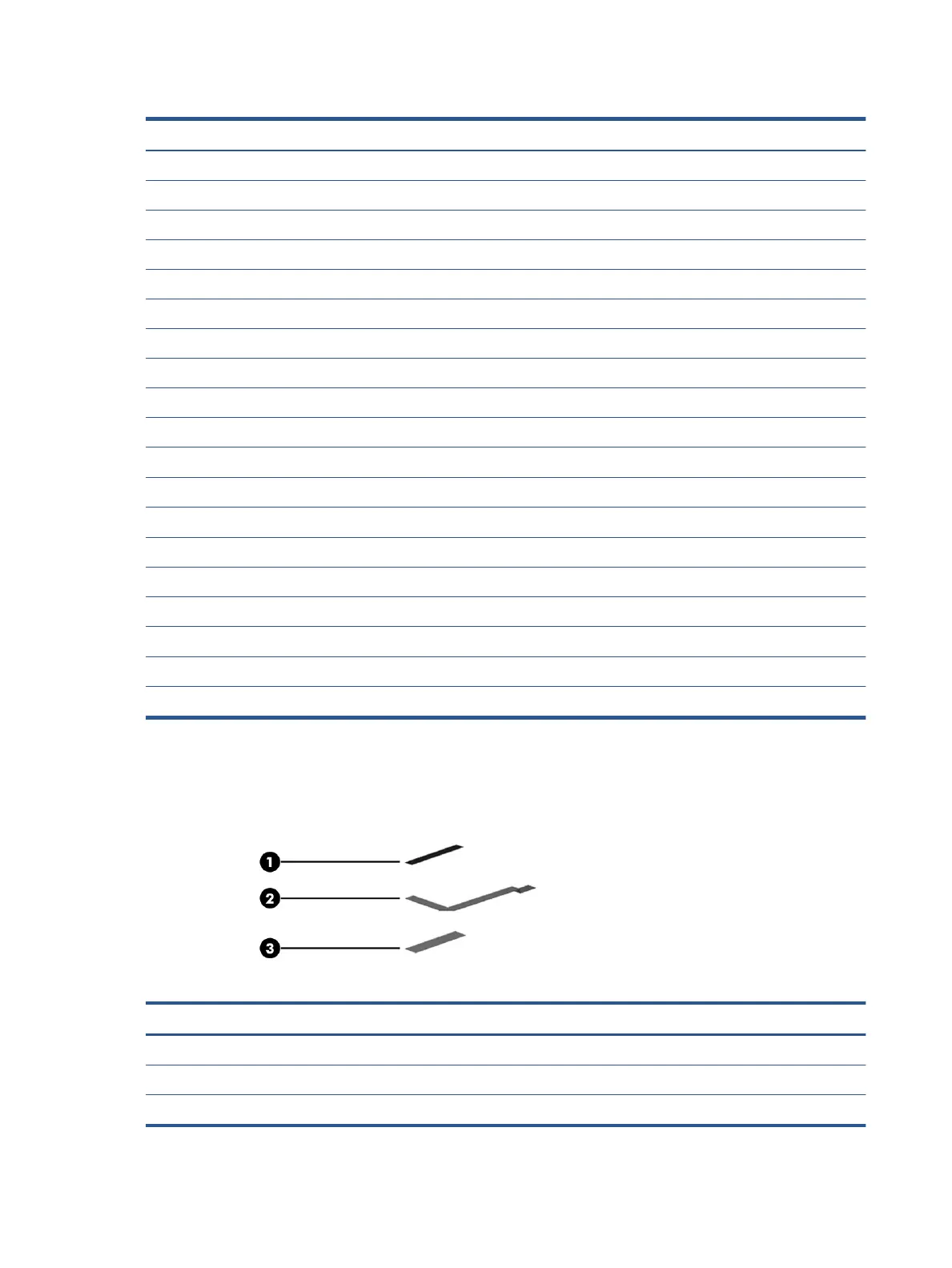

To identify the cables, use this illustration and table.
Table 3-3 Cable descriptions and part numbers
Item Component Spare part number
(1) Fingerprint reader board cable M52810-001
(2) Touchpad cable M52811-001
(3) Audio cable M52812-001
18 Chapter 3 Illustrated parts catalog
