Fingerprint reader

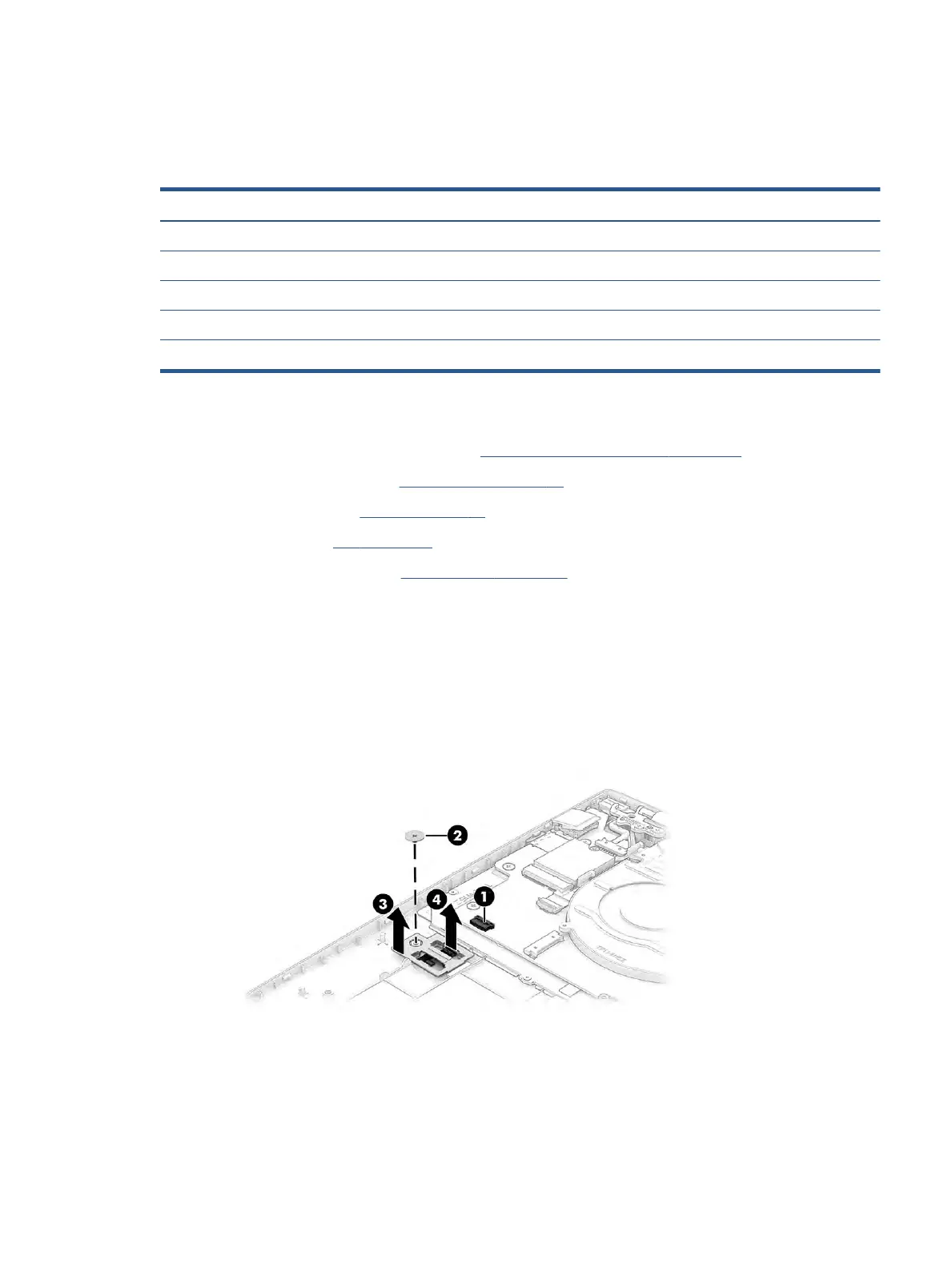

To remove the ngerprint reader, use this procedure and illustration.
Table 5-7 Fingerprint reader description and part number
Description Spare part number
Fingerprint reader, natural silver M52794-001
Fingerprint reader, ceramic white M52795-001
Fingerprint reader, pale rose gold M52796-001
Fingerprint reader, warm gold M52797-001
Fingerprint reader cable M52810-001
Before removing the ngerprint reader, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 29).
2. Remove the bottom cover (see Bottom cover on page 29).
3. Remove the battery (see Battery on page 31).
4. Remove the fan (see Fan on page 37).
5. Remove the system board (see System board on page 42).
Remove the ngerprint reader:
1. Disconnect the ngerprint reader cable to the system board (1).
2. Remove the Phillips M2.0 × 2.0 screw (2) that secures the ngerprint reader bracket to the computer.
3. Remove the bracket from on top of the ngerprint reader (3).
4. Remove the ngerprint reader from the computer (4).
Reverse this procedure to install the ngerprint reader.
Fan
To remove the fan, use this procedure and illustration.
