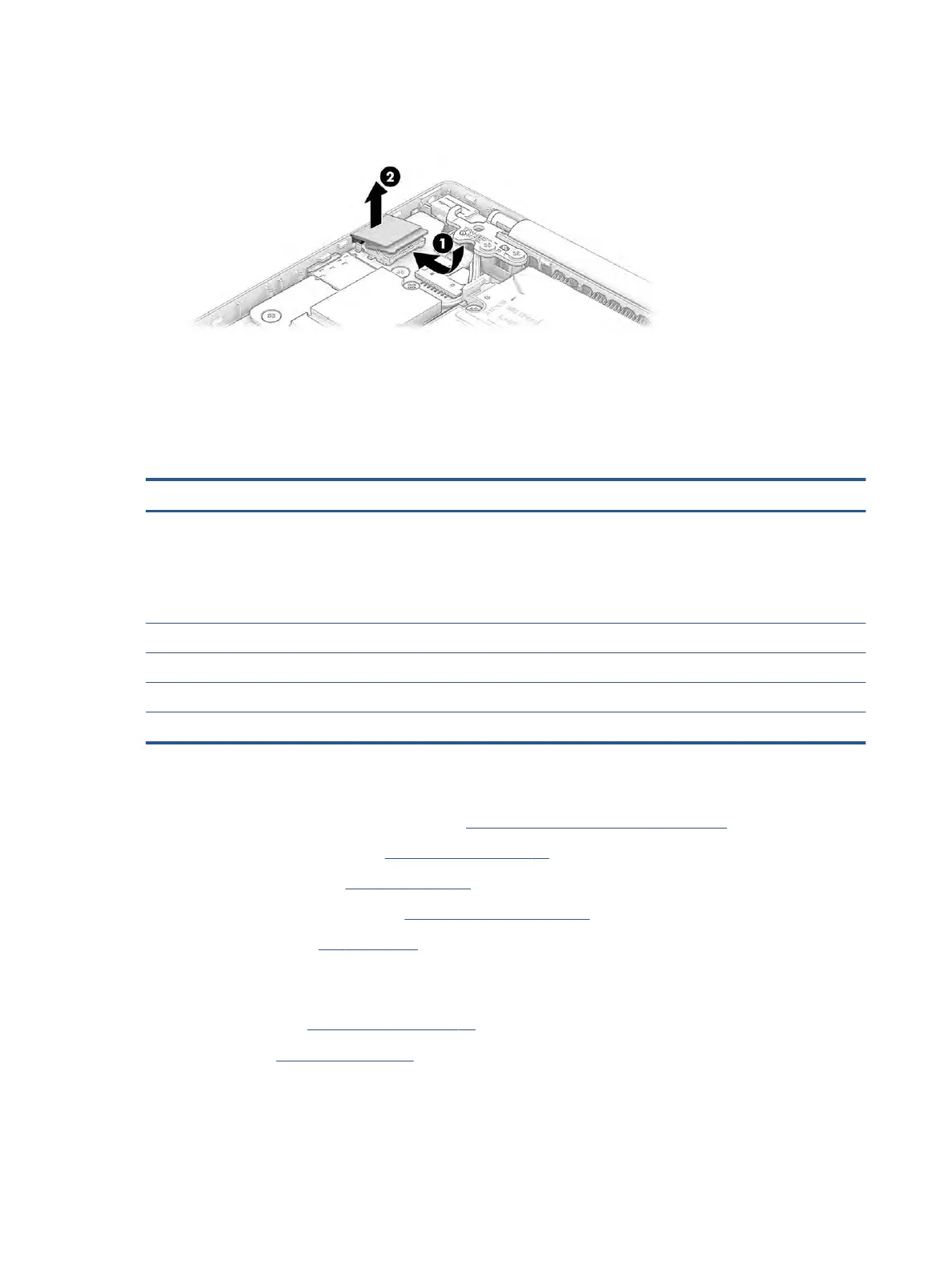

2. Remove the USB door from the computer (2).
Reverse this procedure to install the USB door.
System board
To remove the system board, use these procedures and illustrations.
Table 5-12 System board descriptions and part numbers
Description Spare part number
System board (includes processor):
All system boards use the following part numbers:
xxxxxx-001: Non-Windows operating system
xxxxxx-601: Windows 10 operating system
AMD Ryzen7 5800U processor and 16 GB of system memory M52827-xx1
AMD Ryzen7 5800U processor and 8 GB of system memory M52828-xx1
AMD Ryzen5 5600U processor and 16 GB of system memory M52825-xx1
AMD Ryzen5 5600U processor and 8 GB of system memory M52826-xx1
Before removing the system board, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 29).
2. Remove the bottom cover (see Bottom cover on page 29).
3. Remove the battery (see Battery on page 31).
4. Remove the solid-state drive (see Solid-state drive on page 32).
5. Remove the fan (see Fan on page 37).
When you replace the system board, be sure to remove the following components (as applicable) from the
defective system board and install them on the replacement system board:
● WLAN module (see WLAN module on page 34).
● Heat sink (see Heat sink on page 38).
Remove the system board:
1
. Disconnect the following cables from the system board:
42 Chapter 5 Removal and replacement procedures for authorized service provider parts
