Touchpad

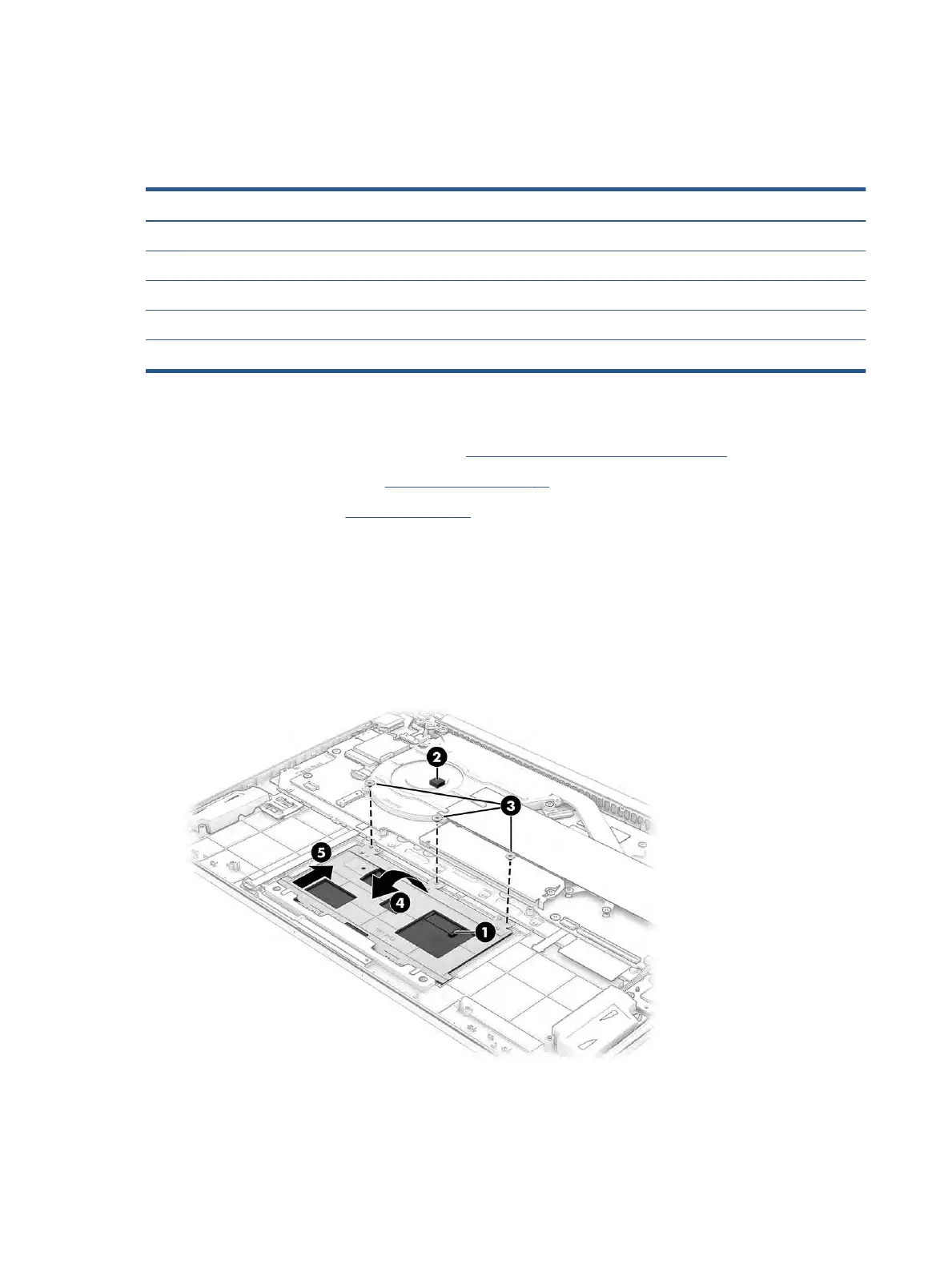

To remove the touchpad, use this procedure and illustration.
Table 5-6 Touchpad description and part number
Description Spare part number
Touchpad, natural silver M52799-001
Touchpad, ceramic white M52800-001
Touchpad, pale rose gold M52801-001
Touchpad, warm gold M52802-001
Touchpad cable M52811-001
Before removing the touchpad, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 29).
2. Remove the bottom cover (see Bottom cover on page 29).
3. Remove the battery (see Battery on page 31).
Remove the touchpad:
1. Disconnect the touchpad cable from the ZIF connector on the touchpad (1).
2. Remove the rubber piece that covers the middle screw (2).
3. Remove the three Phillips M2.0 × 2.0 screws (3) that secure the touchpad to the computer.
4. Lift the top of the touchpad up to about 45° (4), and then pull the touchpad into the computer to remove
it (5).
Reverse this procedure to install the touchpad.
36 Chapter 5 Removal and replacement procedures for authorized service provider parts
