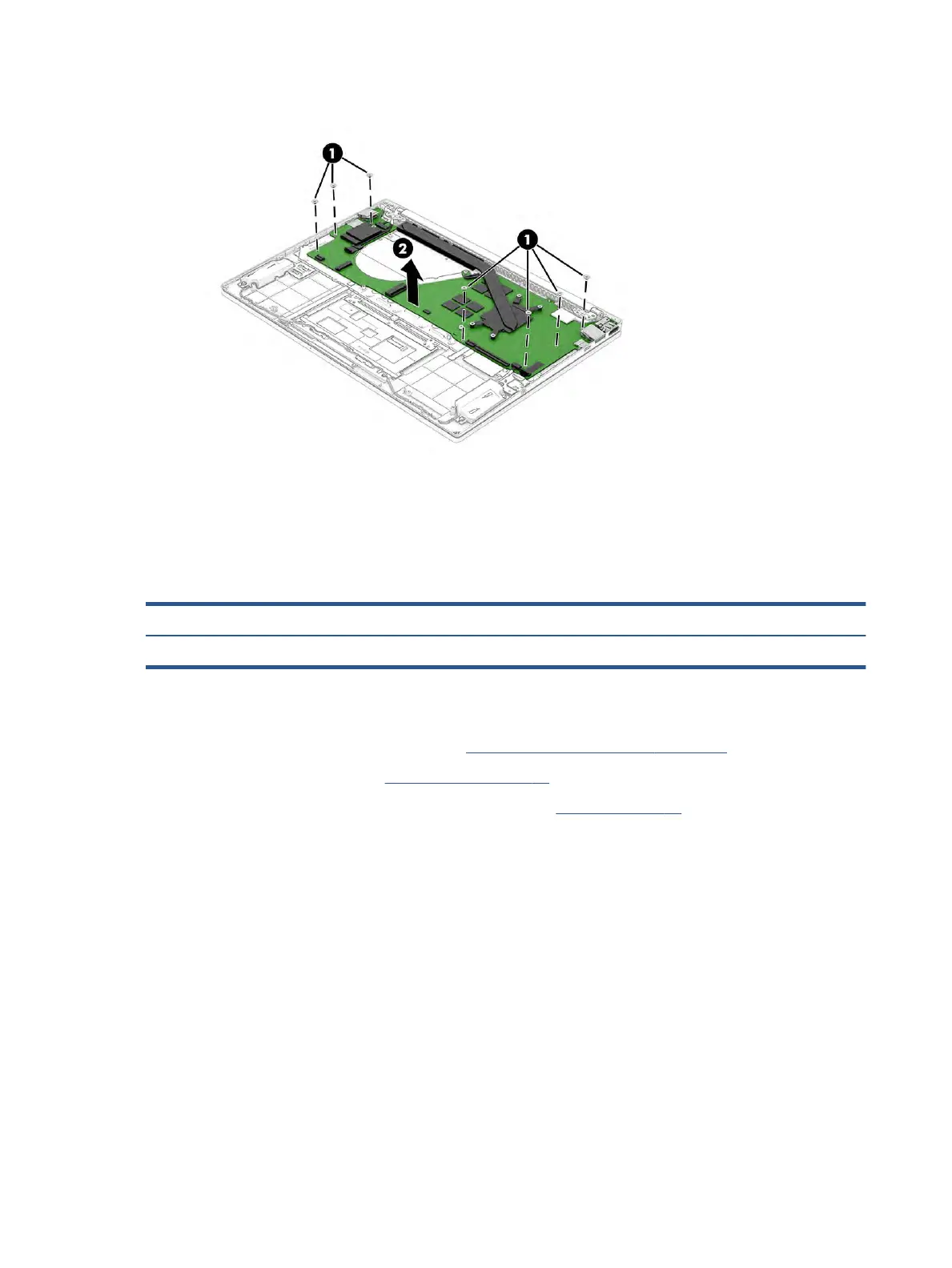

3. Remove the system board from the computer (2).
Reverse this procedure to install the system board.
Power connector cable
To remove the power connector cable, use this procedure and illustration.
Table 5-13 Power connector cable description and part number
Description Spare part number
Power connector cable M45022-001
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 29).
2. Remove the bottom cover (see Bottom cover on page 29).
3. Disconnect the battery cable from the system board (see Battery on page 31).
Remove the power connector cable:
1. Remove the two Phillips M2.5 × 5.0 screws (1) from the right hinge.
2. Rotate the hinge o the power connector (2).
3. Disconnect the power connector cable from the system board (3).
44 Chapter 5 Removal and replacement procedures for authorized service provider parts
