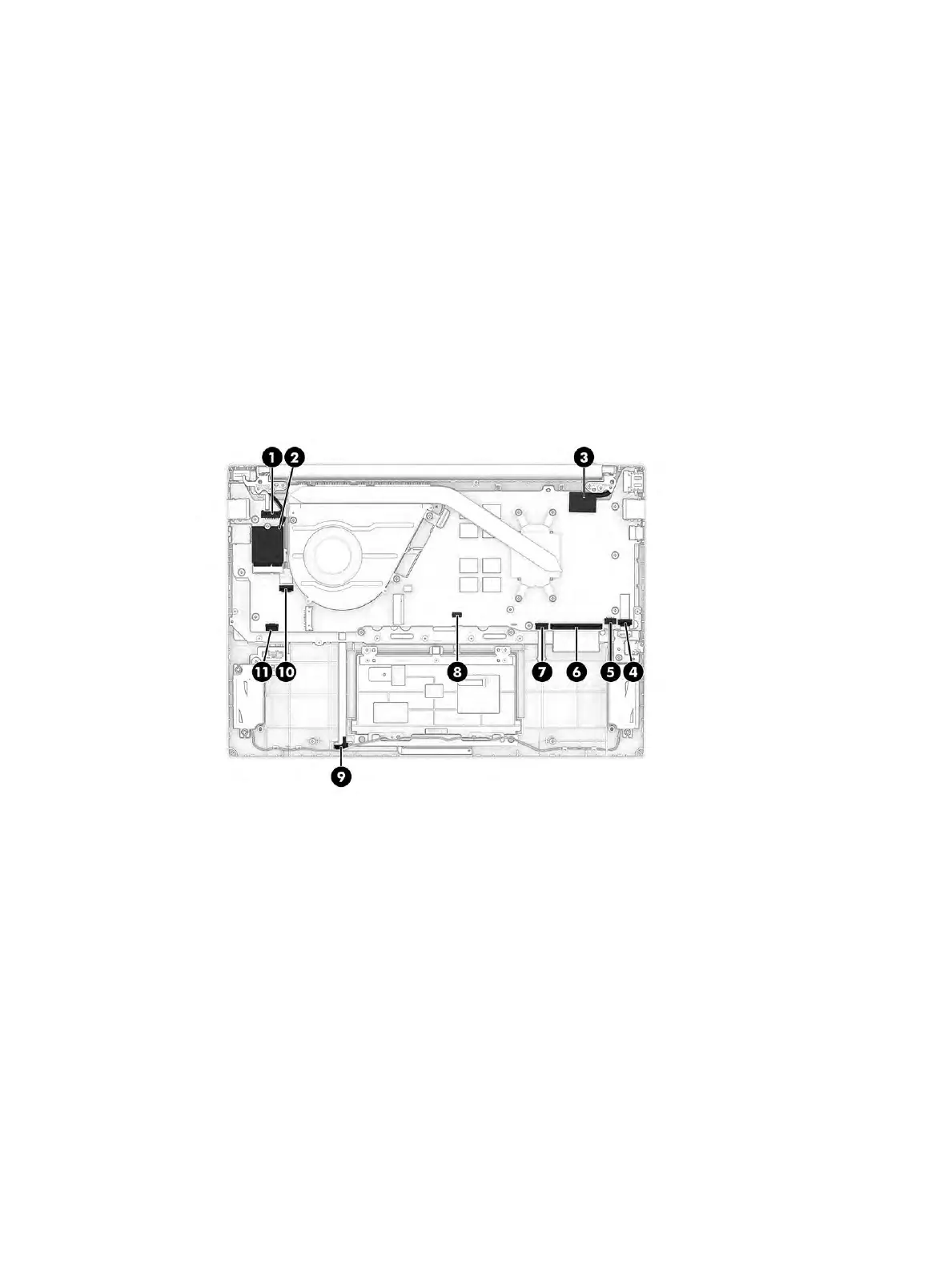

● Power connector (DC-in) board cable (1)
● WLAN antennas from the WLAN module
(2)
● Display cable (ZIF)
(3)
● Audio board cable (ZIF)
(4)
● Speaker cable (5)
● Keyboard cable (ZIF) (6)
● Keyboard backlight cable (ZIF) (7) (select products only)
● Touchpad cable (ZIF) (8)
● Light bar cable from the light bar (ZIF) (9)
● Camera cable (10)
● Fingerprint reader cable (ZIF) (11) (select products only)
2
. Remove the seven Phillips M2.0 × 2.0 screws (1) that secure the system board to the computer.
