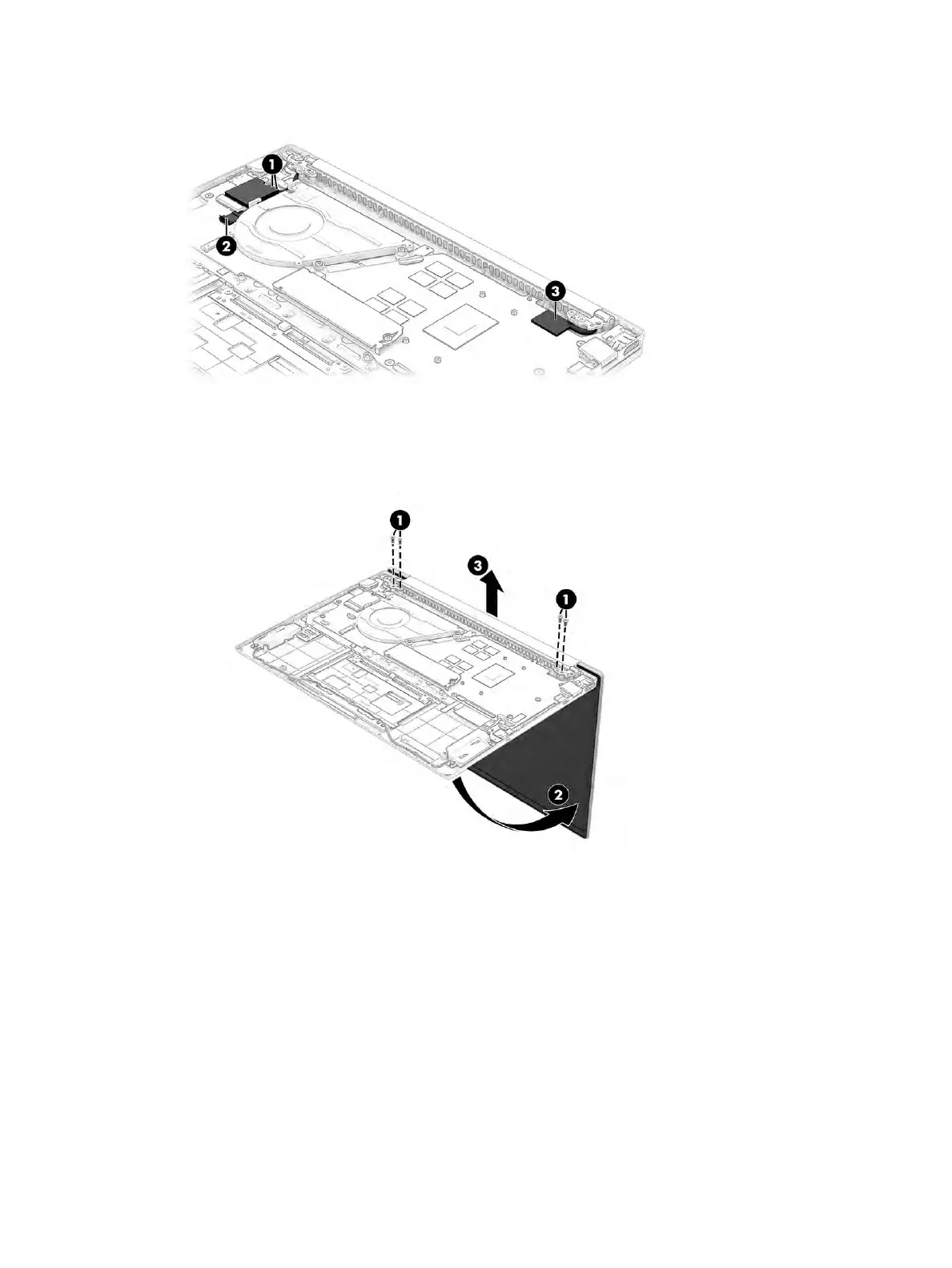

3. Disconnect the display cable from the system board ZIF connector (3).
4. Remove the four Phillips M2.5 × 5.0 screws (1) that secure the display assembly to the computer.
5. Open the display to open the hinges (2).
6. Separate the display from the computer (3).
7. If you need to remove the display bezel:
a. Use a at, nonmarking tool to release the top edge of the display bezel (1) from the display
assembly.
b. Release the left and right edges of the display bezel (2) from the display assembly.
c. Release the bottom edge of the display bezel (3) from the display assembly.
d. Remove the display bezel (4) from the display assembly.
The bezel is available as the following spare part numbers:
M52785-001: Ceramic white
M52786-001: Natural silver
M52787-001: Pale rose gold
46 Chapter 5 Removal and replacement procedures for authorized service provider parts
