HP Pavilion x2

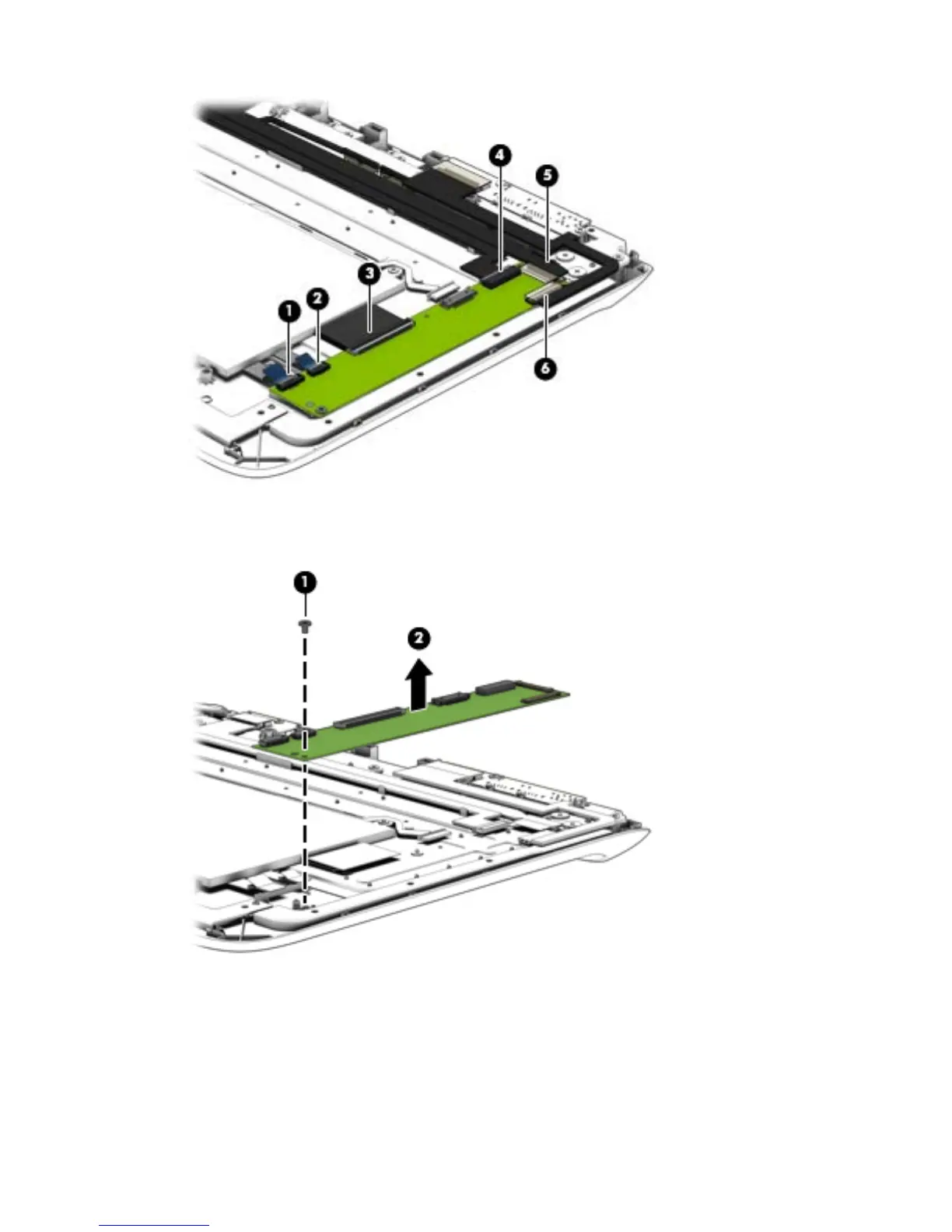

2. Remove the Phillips PM2.0×3.0 screw (1) that secures the I/O board to the dock.
3. Lift the board up and off the dock (2).
Reverse this procedure to install the I/O board.
32 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
