Card reader board
Description Spare part number
Card reader board (includes cable) 765983-001
Before removing the card reader board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Disconnect the tablet from the keyboard dock (see
Releasing the tablet from the keyboard dock
on page 25).
5. Remove the dock bottom cover (see
Dock bottom cover on page 26).
6. Disconnect the battery cable (see
Battery cable on page 28).
7. Remove the battery (see
Battery on page 39.

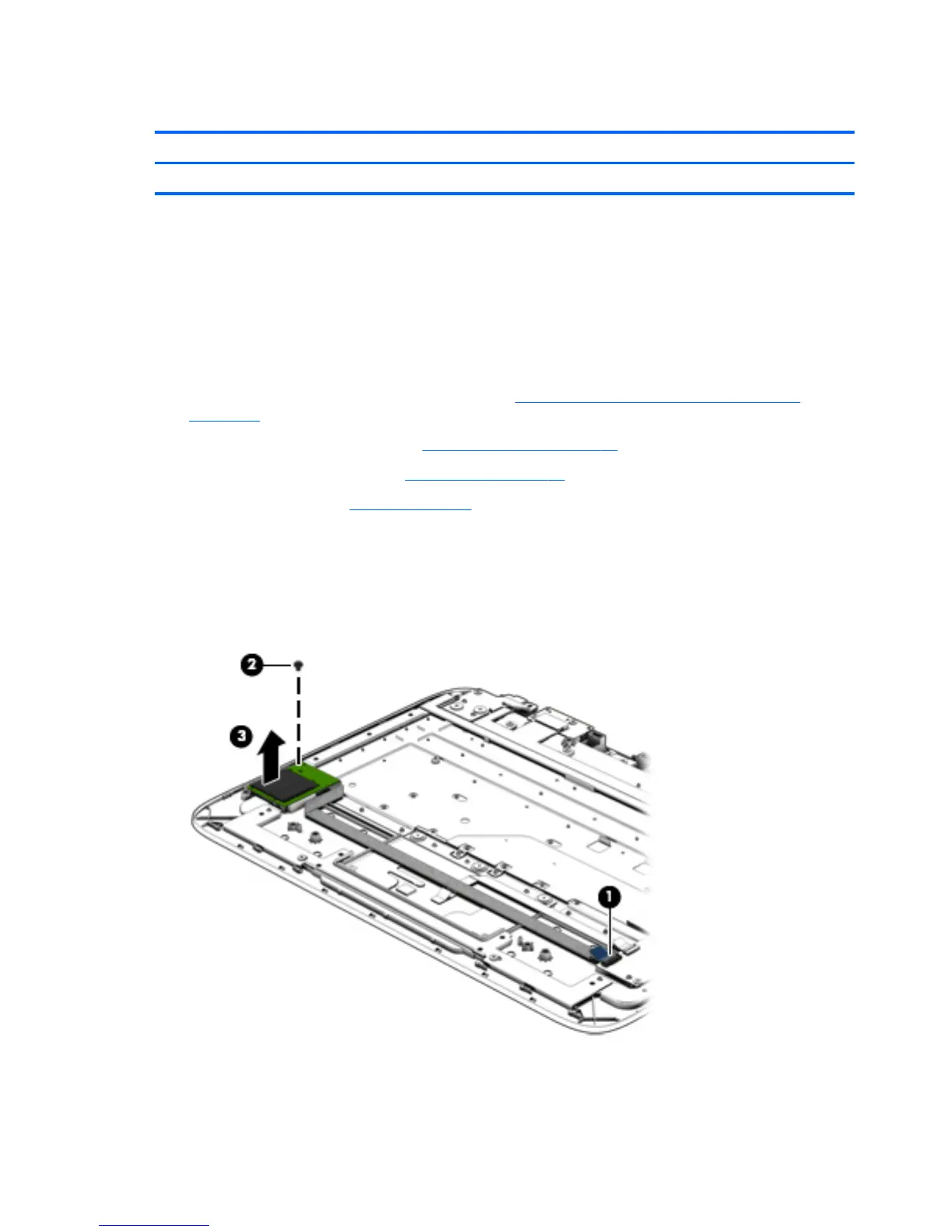

Remove the card reader board:
1. Disconnect the card reader cable (1) from the I/O board.
2. Remove the Phillips PM2.0×4.0 screw (2) that secures the card reader board to the dock.
3. Lift the card reader board from the dock (3).
Reverse these procedures to install the card reader board.
