Audio/SD board
Description Spare part number
Audio/SD board for use in models without Bay Trail M processors (includes cable) 765988-001
Audio/SD board for use in models with Bay Trail M processors (includes cable) 777951-001
Before removing the audio/SD board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Disconnect the tablet from the keyboard dock (see
Releasing the tablet from the keyboard dock
on page 25).
5. Remove the tablet cover (see
Tablet cover on page 43).
6. Disconnect the battery cable (see
Battery cable on page 45).

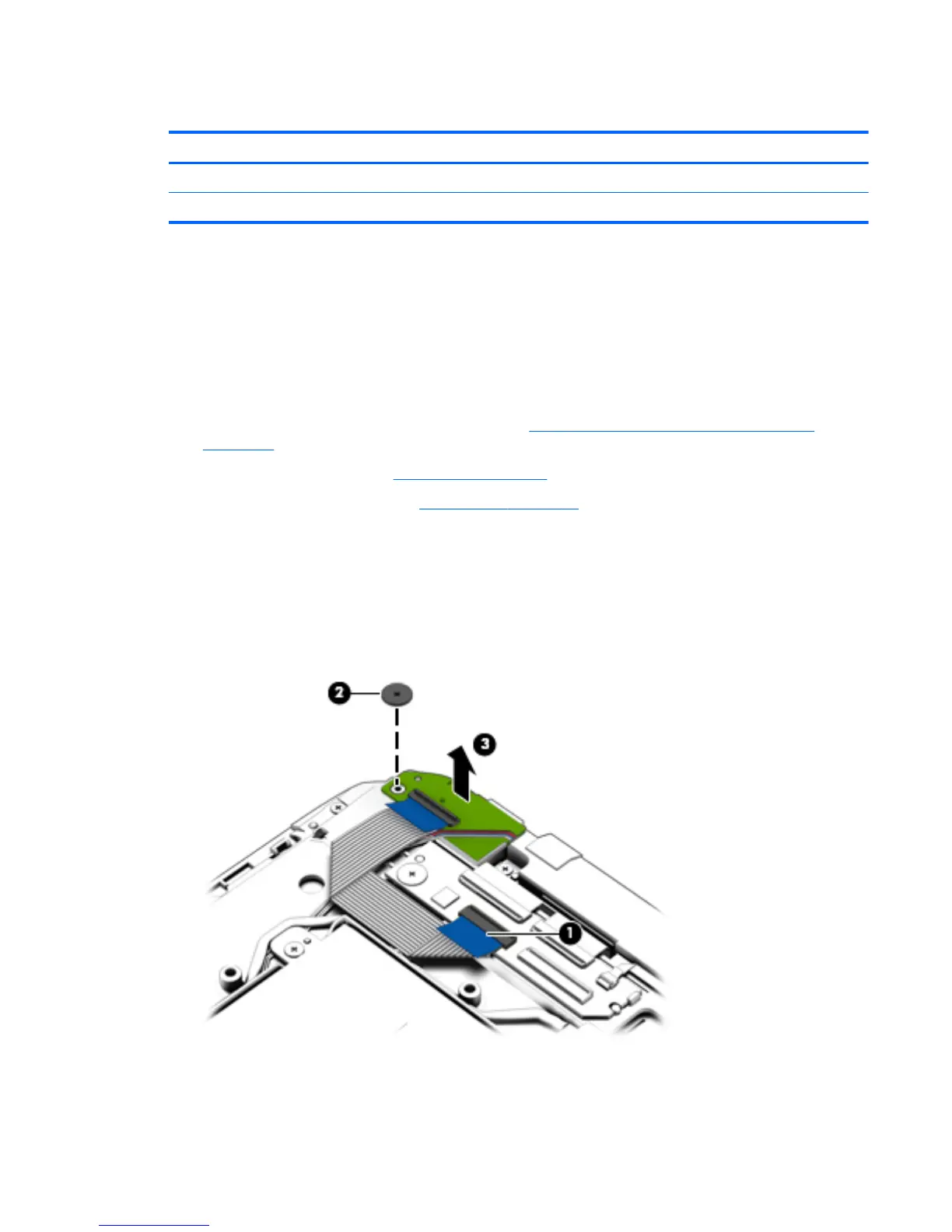

To remove the audio/SD board:
1. Disconnect the cable from the touch board (1).
2. Remove the Phillips PM2.0×2.0 broadhead screw (2) that secures the board to the tablet.
3. Lift the audio/SD board from the tablet (3).
Reverse this procedure to install the audio/SD board.
Tablet components 53
