Dock board
Description Spare part number
Dock board (includes cable) 765992-001
Before removing the dock board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn
the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Disconnect the tablet from the keyboard dock (see
Releasing the tablet from the keyboard dock
on page 25).
5. Remove the tablet cover (see
Tablet cover on page 43).
6. Disconnect the battery cable (see
Battery cable on page 45).
7. Disconnect the docking cable (see
Cables, docking and touch on page 46).

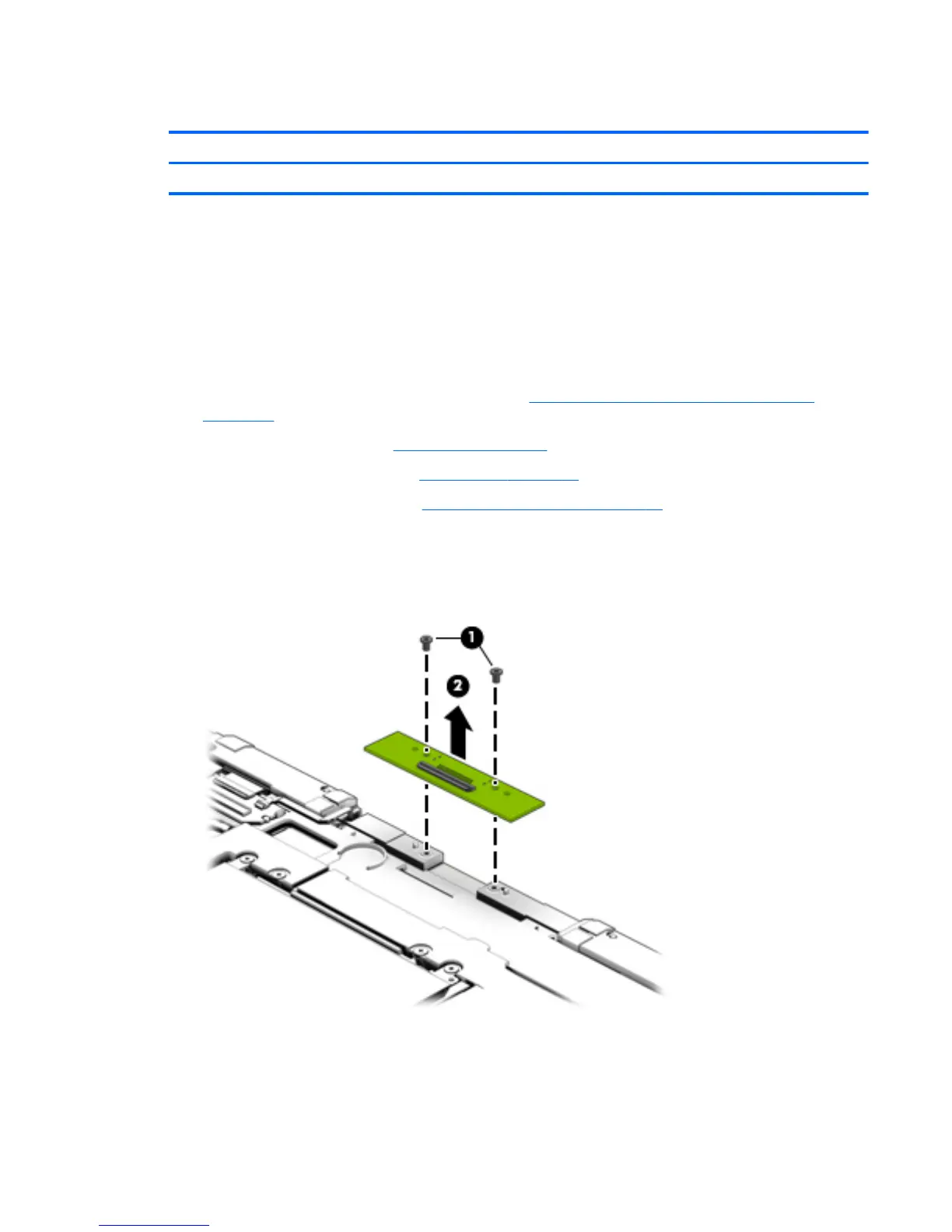

To remove the dock board:
1. Remove the two Phillips PM2.0×3.0 screws (1) that secure the board to the tablet.
2. Lift the dock board from the tablet (2).
Reverse this procedure to install the dock board.
Tablet components 55
