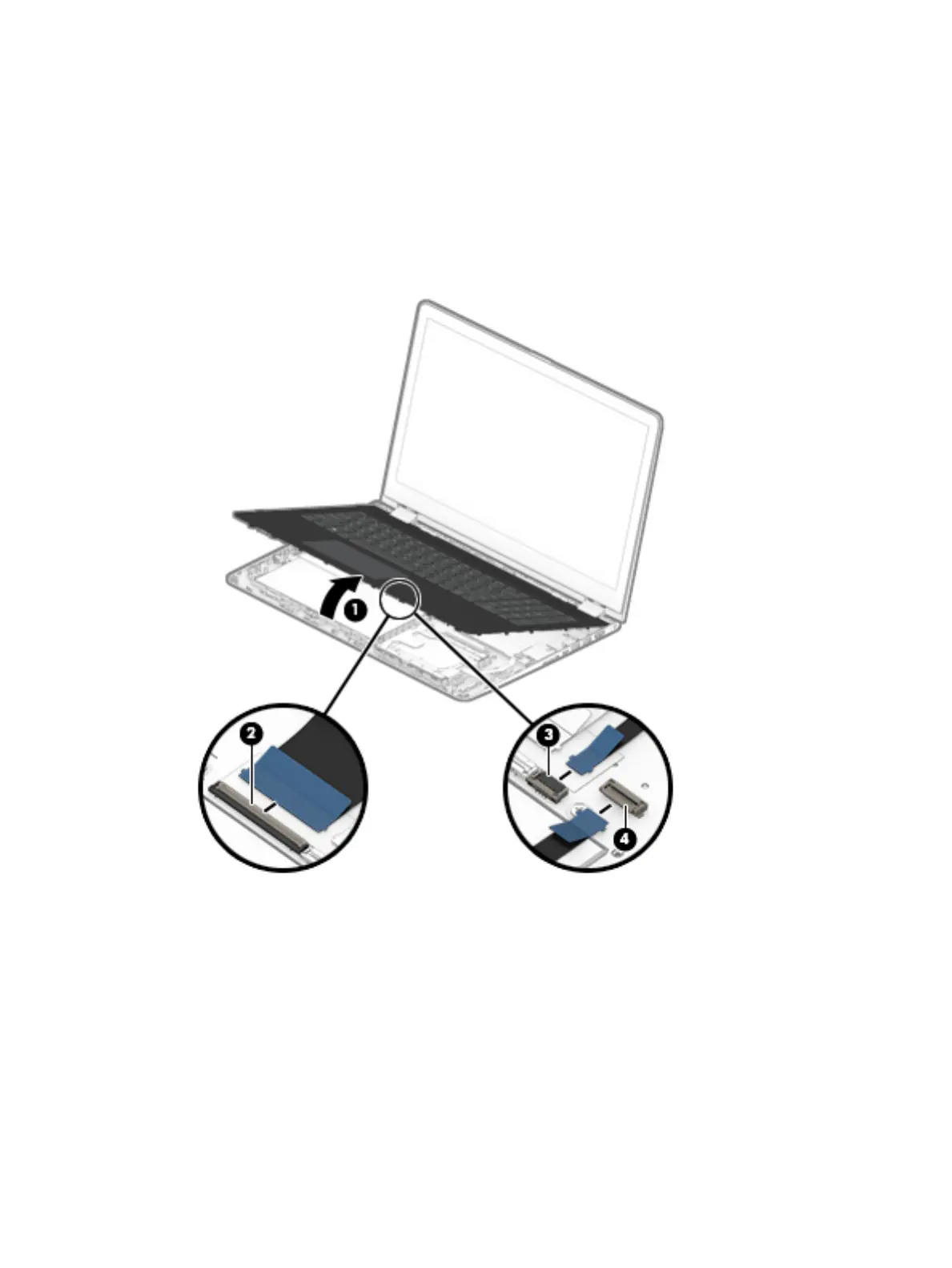

10. Lift the front edge of the keyboard/top cover (1) until the keyboard cable, backlight cable, and
TouchPad cable connectors are accessible.
11. Release the zero insertion force (ZIF) connector (2) to which keyboard cable is connected, and then
disconnect the keyboard cable from the system board.
12. Release the ZIF connector (3) to which backlight cable is connected, and then disconnect
the backlight cable from the system board.
13. Release the ZIF connector (4) to which TouchPad cable is connected, and then disconnect
the TouchPad cable from the system board.
14. Remove the keyboard/top cover.
Reverse this procedure to install the keyboard/top cover.
Component replacement procedures 27
