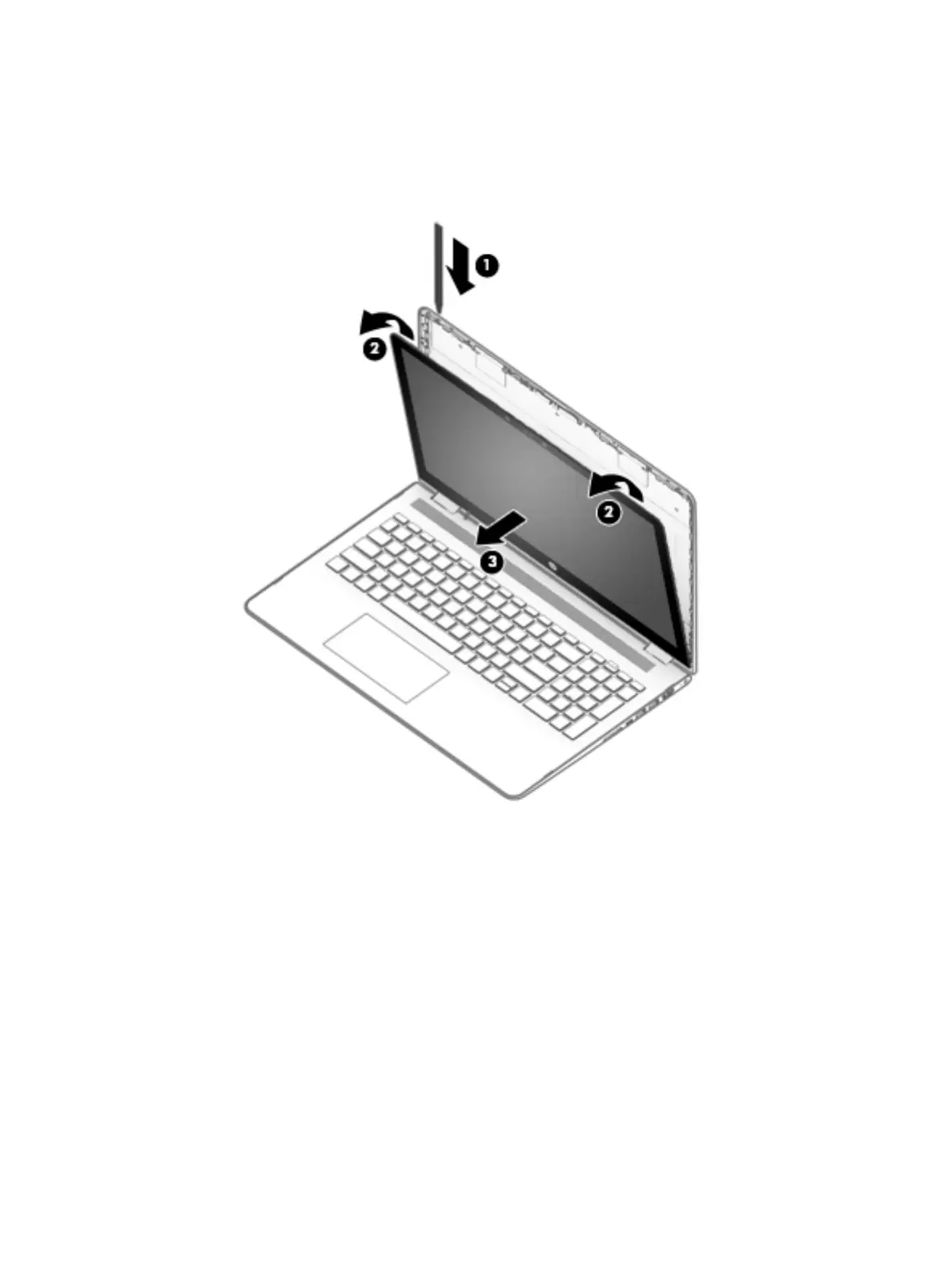

a. Insert a case utility tool (1) or similar thin, plastic tool between the top edges of the display panel
assembly and the display back cover.
b. Release the top edge of the display panel assembly (2) from the display back cover.
c. Swing the display panel assembly (3) forward until it rests on the keyboard.
d. Detach the two pieces of tape (1) that secure the TouchScreen board and TouchScreen
board cables to the display panel assembly.
Component replacement procedures 49
