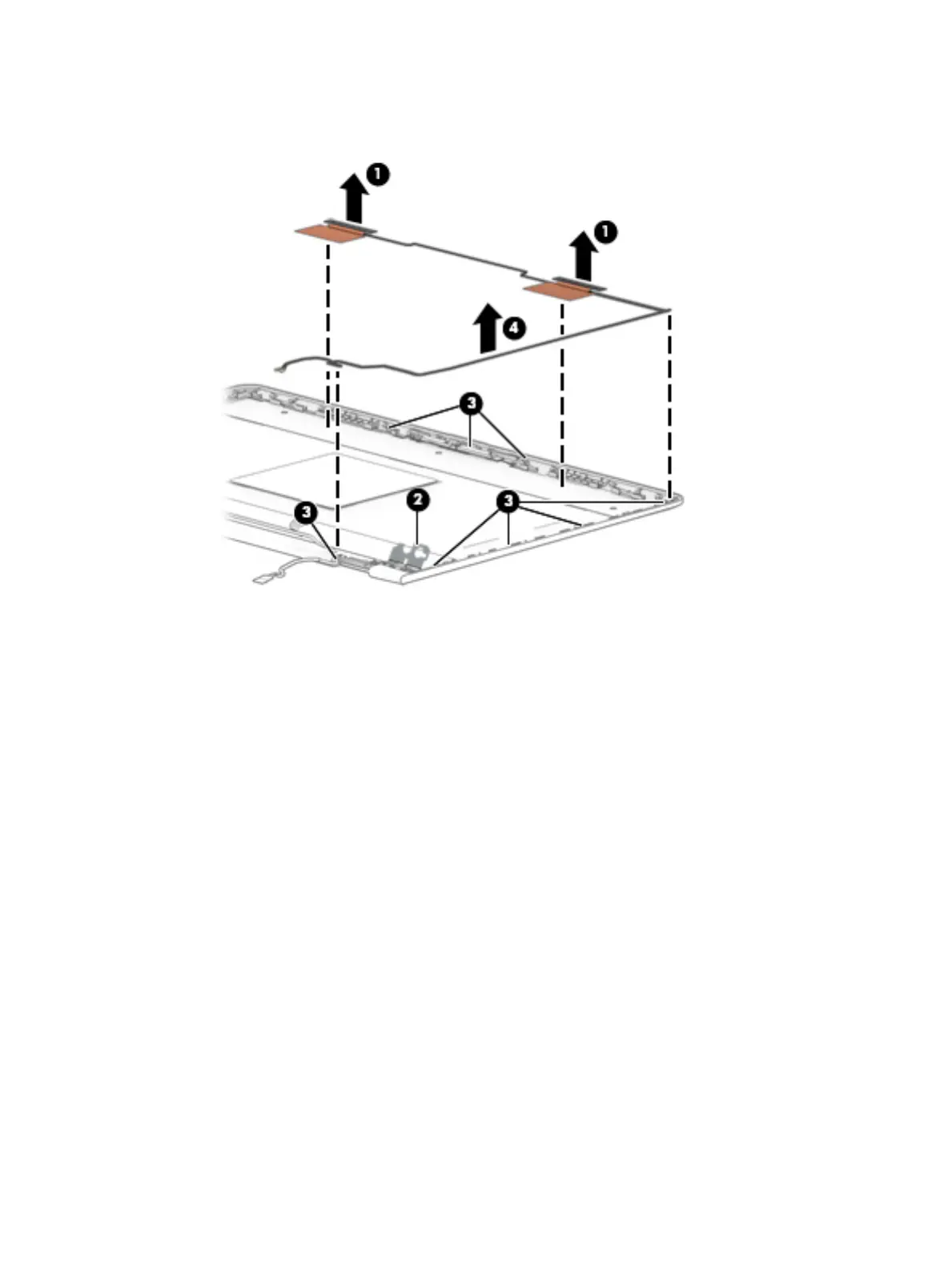

f. Remove the wireless antenna cables and transceivers (4).
The wireless antenna cables and transceivers are available using spare part number 924476-001.
10. If it is necessary to replace the display panel cable:
a. Remove the display panel assembly.
b. Remove the left display hinge.
c. Release the left wireless antenna transceiver.
d. Disconnect the webcam/microphone module cable (1) from the webcam/microphone module.
e. Release the shielding material (2) that secures the display panel cable to the display back cover.
f. Release the display panel cable from the retention clips (3) and routing channel built into the top,
left, and bottom edges of the display back cover.
56 Chapter 5 Removal and replacement procedures
