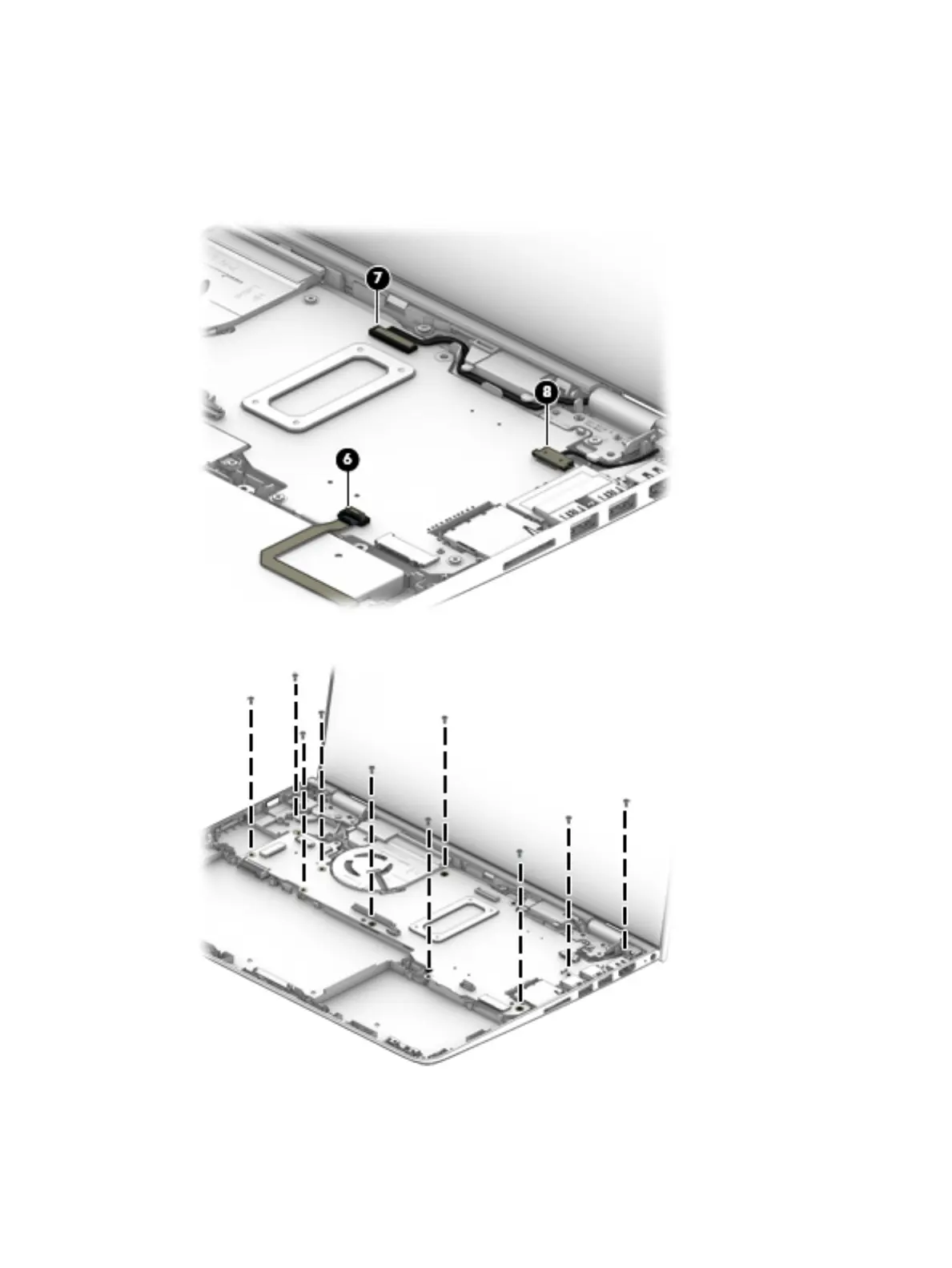

2. Disconnect the following cables from the system board:
(6) Mass storage device ZIF connector cable
(7) Display panel cable
(8) Power connector cable
3. Remove the ten Phillips PM2.0×4.7 screws that secure the system board to the base enclosure.
4. Lift the left side of the system board (1) until it rests at an angle.
Component replacement procedures 53
