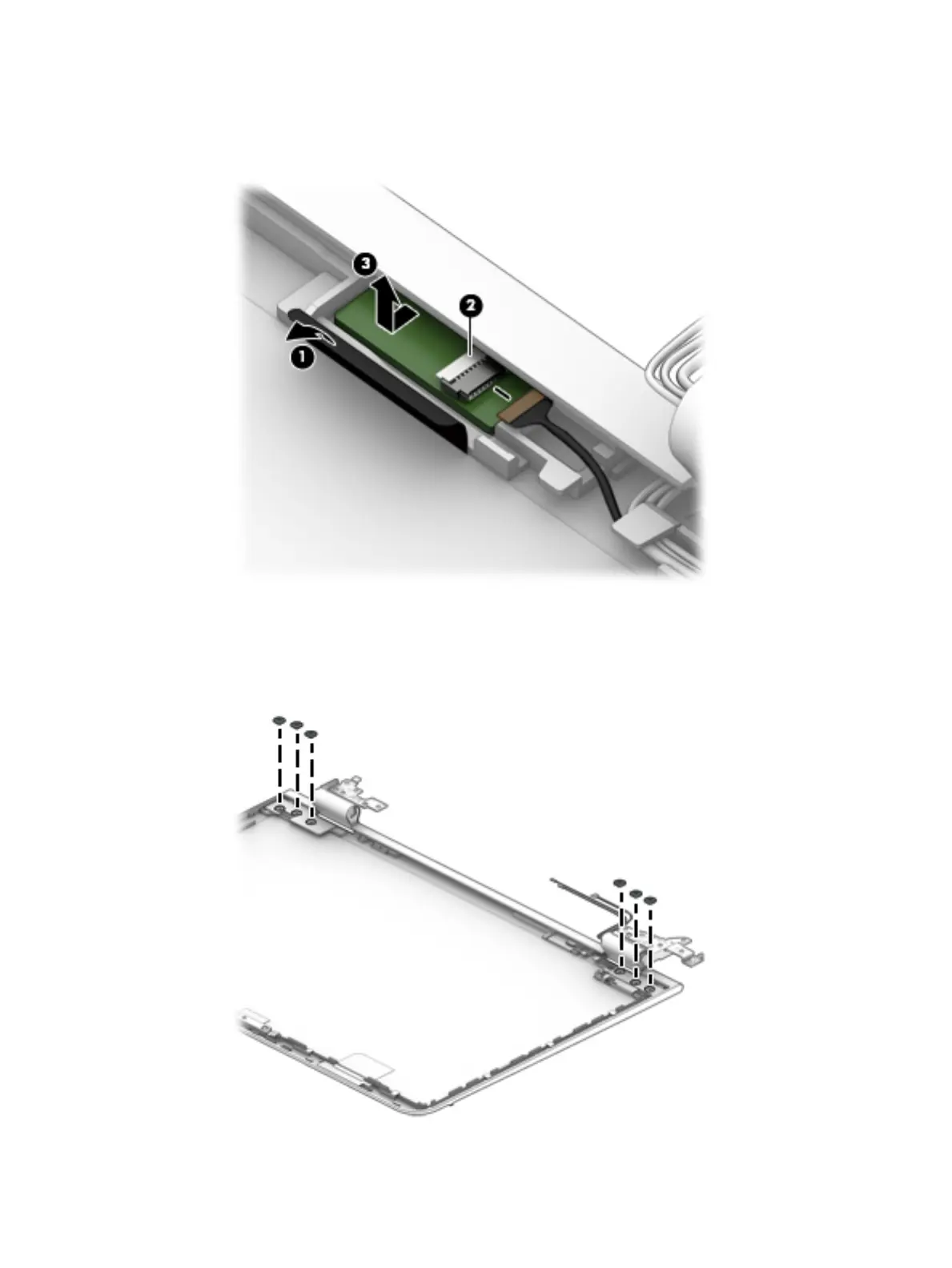

d. Slide the G-sensor board (3) away from the display enclosure, and then remove the G-
sensor board.
The G-sensor board is available using spare part number 856015-001.
7. If it is necessary to replace the display hinges:
a. Remove the display panel assembly.
b. Remove the six Phillips PM2.4×3.0 broad head screws that secure the display hinges to
the display back cover.
Component replacement procedures 65
