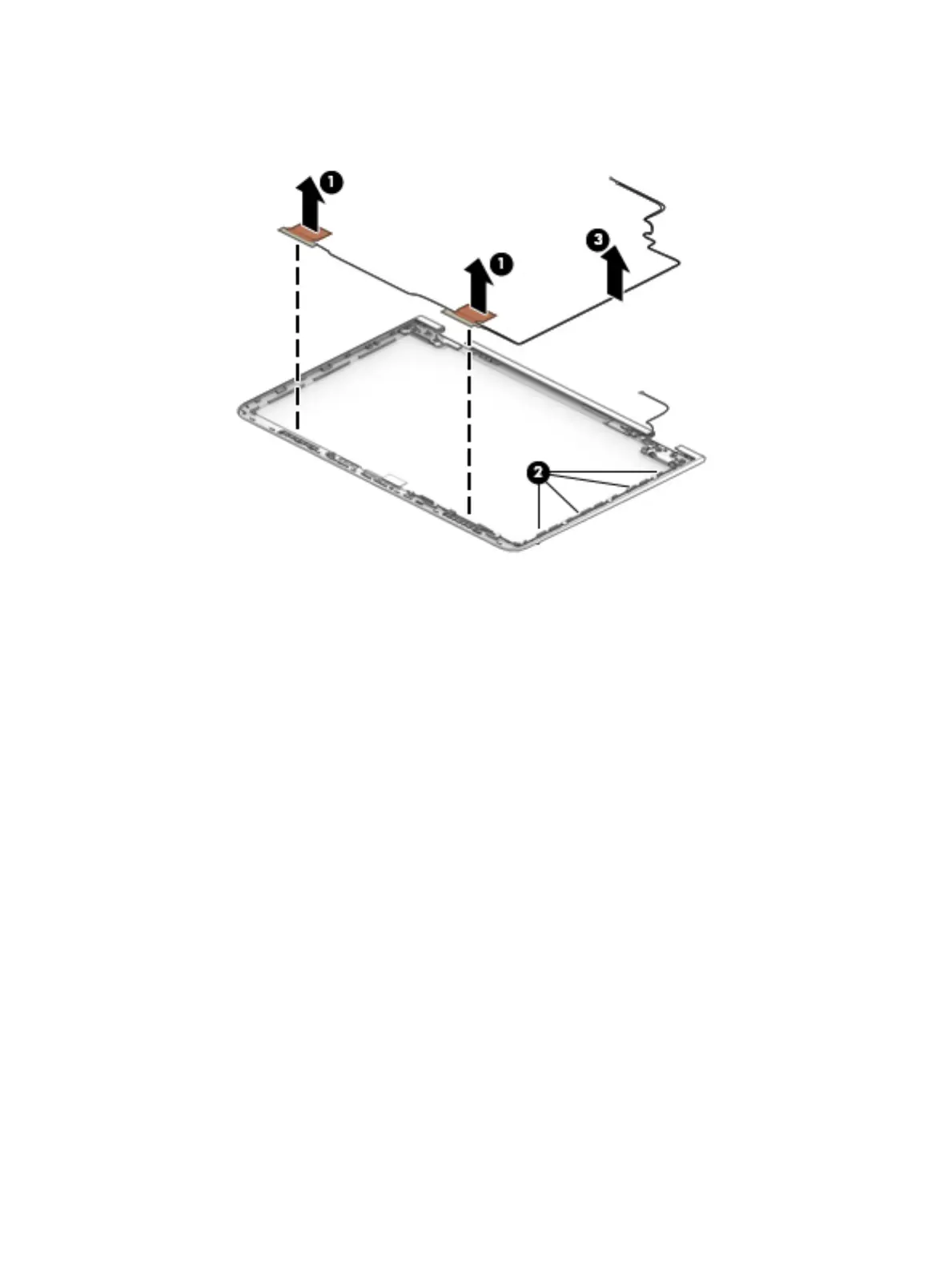

e. Remove the wireless antenna cables and transceivers (3).
The wireless antenna cables and transceivers are available using spare part number 856025-001.
9. If it is necessary to replace the webcam/microphone module cable:
a. Remove the display panel assembly.
b. Remove the webcam/microphone module.
c. Remove the display hinges.
d. Remove the wireless antenna.
e. Release the webcam/microphone module cable from the routing clips (1) and channel built into
the display back cover.
Component replacement procedures 67
