Component ID
Hardware and Software Guide 1–11

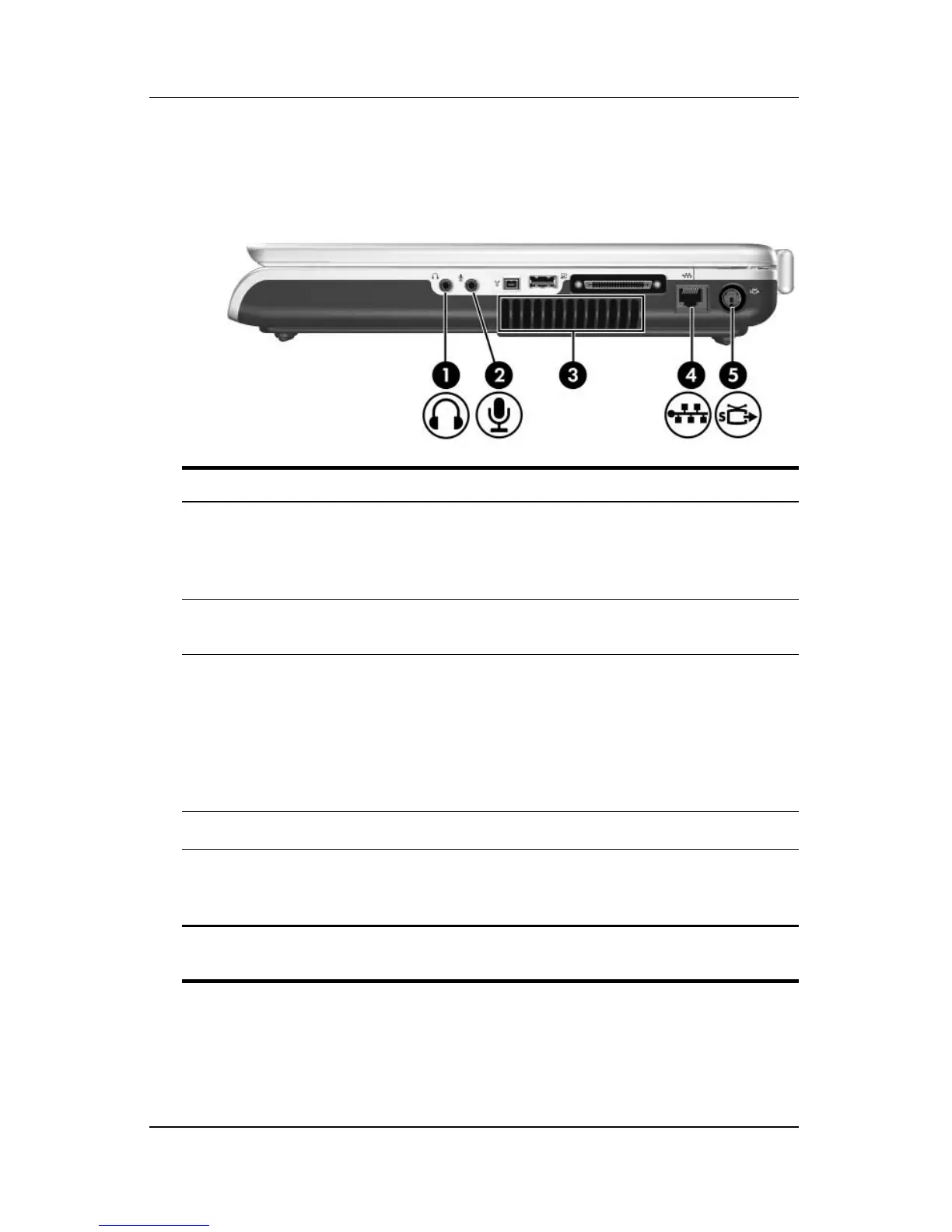

Jacks and Vent
Component Description
1
Audio-out
(headphone) jack
Connects optional headphones or powered
stereo speakers. Also connects the audio
function of an audio/video device such as
a television or VCR.
2
Audio-in
(microphone) jack
Connects an optional monaural (single sound
channel) microphone.
3
Exhaust vent* Provides airflow to cool internal components.
Ä
To prevent overheating, do not obstruct
vents. Do not allow a hard surface,
such as a printer, or a soft surface,
such as pillows or thick rugs or
clothing, to block airflow.
4
RJ-45 (network) jack Connects an optional network cable.
5
S-Video-out jack Connects an optional S-Video device, such
as a television, VCR, camcorder, projector, or
video capture card.
*The notebook has 5 vents. Two of these vents are visible on the rear
of the notebook. All vents are visible on the bottom of the notebook.
