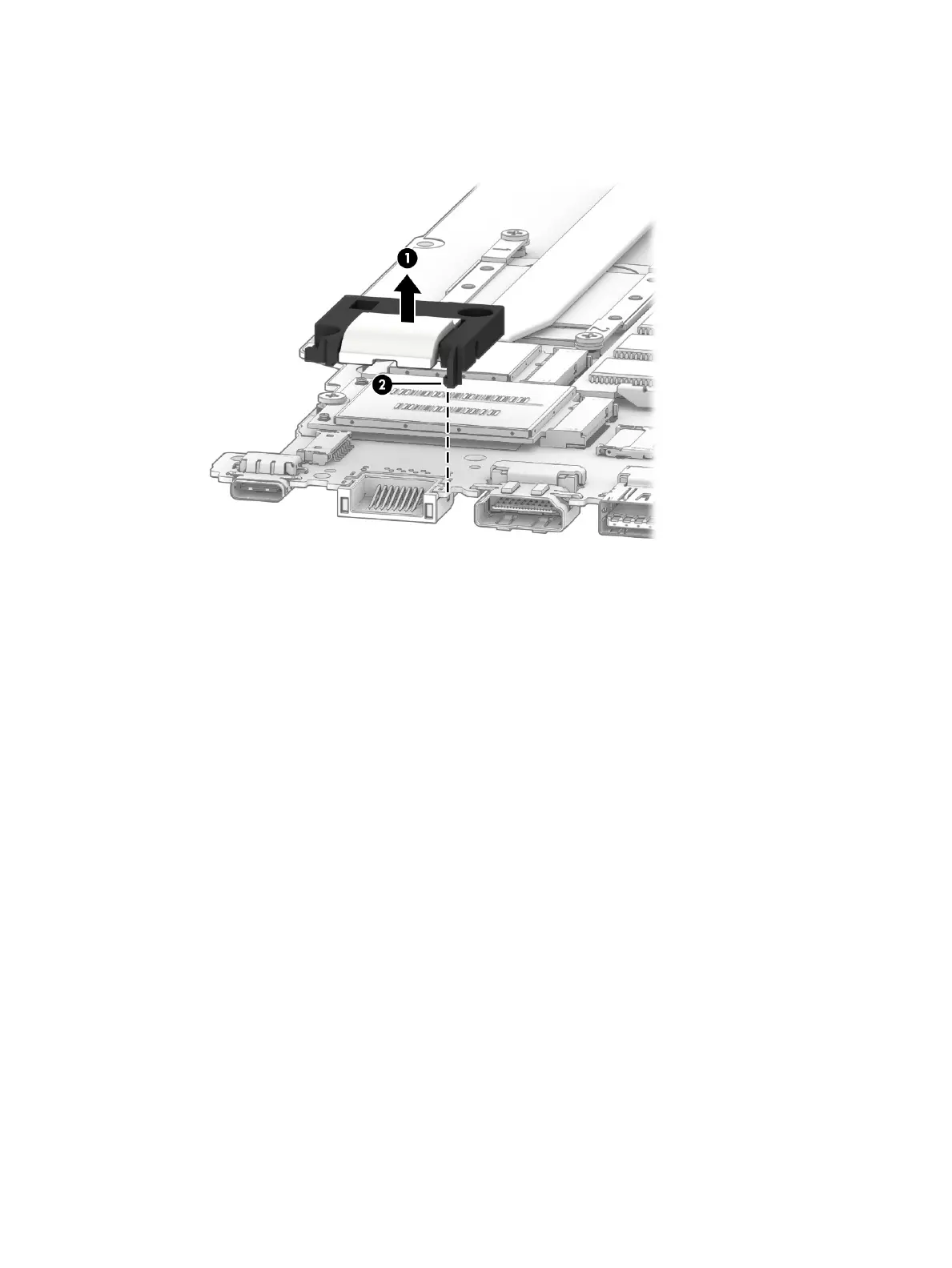

7. If it is necessary to remove the RJ-45 cover from the system board, lift the cover (1) while sliding the tab
in the cover (2) out of the notch in the connector on the board.
The USB bracket and RJ-45 cover are available in the Bracket Kit as spare part number L81306-001.
Reverse this procedure to install the system board.
