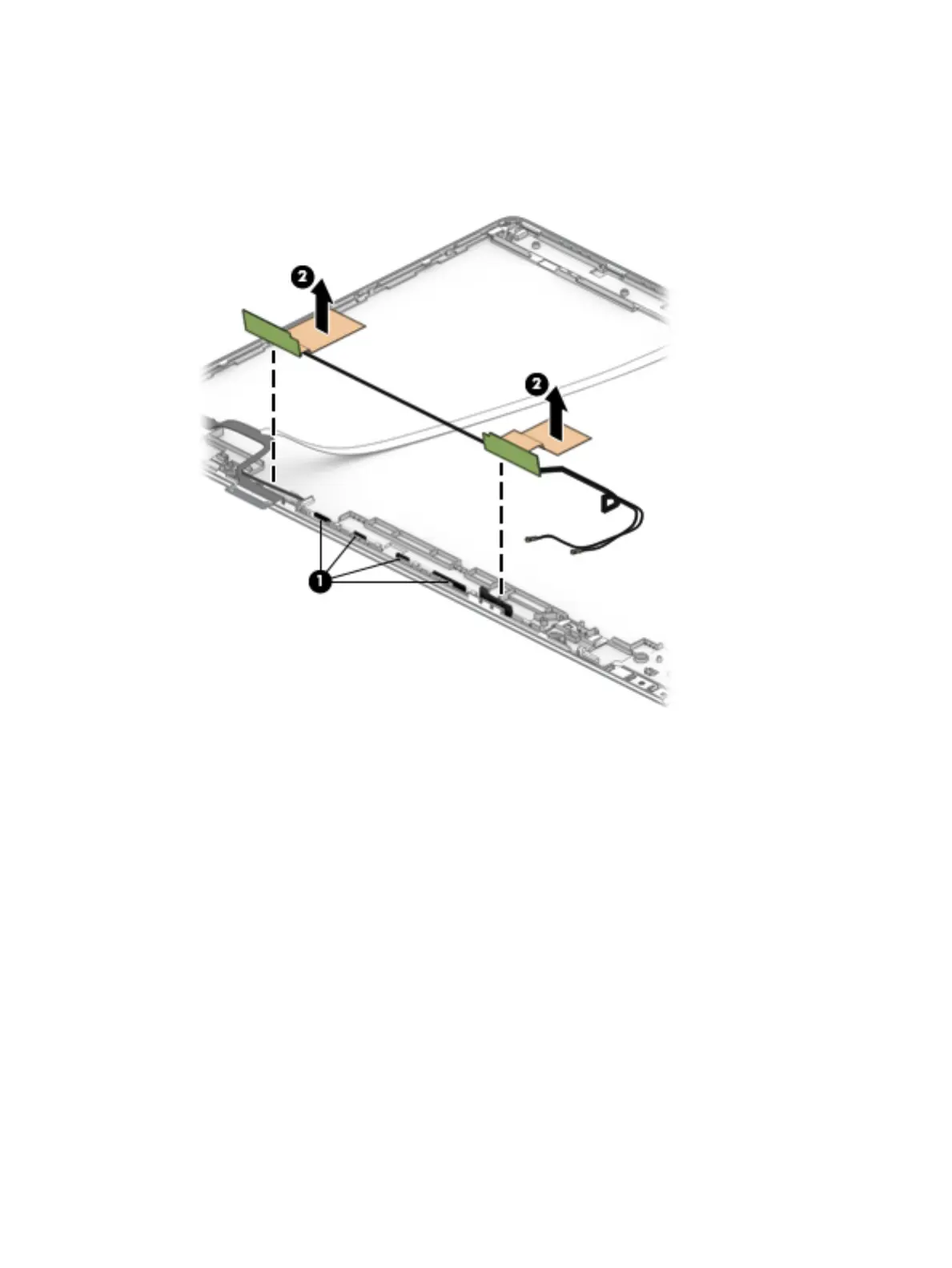

16. If it is necessary to replace the WLAN antennas, remove the cables from the clips in the bottom of the
enclosure (1), and then peel the antennas and remove them from the display enclosure (2).
WLAN antennas are available spare part number L78051-001.
17. If it is necessary to remove or replace the display/camera cable, use the following steps:
Displays with an HD + IR camera
a. Rotate the WWAN antennas (1), and then disconnect the WWAN cable (2).
b. Disconnect the cable from the connector on both ends of the camera module (3).
Component replacement procedures 77
